XLPE Insulation Shipboard Fire Resting Symmetrical Communication Cable
Model Specifications
CHJV/NA, CHJPJ/NA, CHJPF/NC; CHJV80/NA, CHJPJ80/NC, CHJPF80/NC; CHJV90/NA, CHJPJ90/NC, CHJPF90/NC; CHJV82/NA, CHJPJ85/NC, CHJPF86/NC; CHJV92/NA, CHJPJ95/NC, CHJPF96/NC

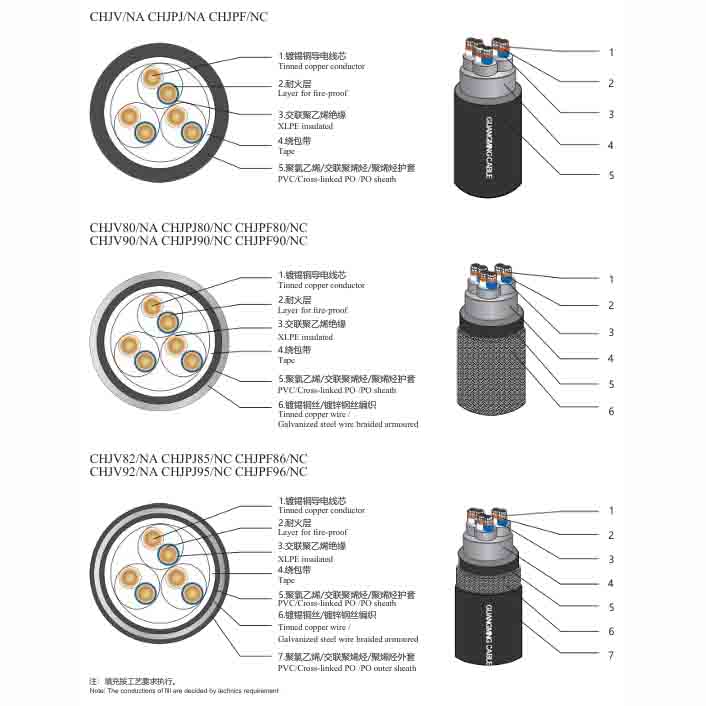

Cable Structure Diagram and Component Description
First Structure (for basic models like CHJV/NA etc.)
- Tinned copper conductor
- Layer for fire – proof
- XLPE insulated
- Tape
- PVC/Cross – linked PO/PO sheath
Second Structure (for models with additional screen like CHJV80/NA etc.)
- Tinned copper conductor
- Layer for fire – proof
- XLPE insulated
- Tape
- PVC/Cross – linked PO/PO sheath
- Tinned copper wire / Galvanized steel wire braided armoured
Third Structure (for more complex models like CHJV82/NA etc.)
- Tinned copper conductor
- Layer for fire – proof
- XLPE insulated
- Tape
- PVC/Cross – linked PO/PO sheath
- Tinned copper wire / Galvanized steel wire braided armoured
- PVC/Cross – linked PO/PO outer sheath
Note: The conductions of fill are decided by technics requirement.
Technical Parameters Table (150/250V, 90°C)
For models: CHJV/NA, CHJPJ/NC, CHJPF/NC
| Number of Cores × Nominal Cross – Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|
| Nominal Value | Maximum Value | ||
| 1×2×0.75 | 6.8 | 7.8 | 72 |
| 2×2×0.75 | 9.7 | 10.7 | 111 |
| 3×2×0.75 | 10.3 | 11.3 | 138 |
| … (continue with all rows as per original table for this part) |
For models: CHJV80/NA, CHJPJ80/NC, CHJPF80/NC; CHJV90/NA, CHJPJ90/NC, CHJPF90/NC
| Number of Cores × Nominal Cross – Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|
| Nominal Value | Maximum Value | ||
| 1×2×0.75 | 8.0 | 9.0 | 115 |
| 2×2×0.75 | 11.1 | 12.1 | 179 |
| 3×2×0.75 | 11.7 | 12.7 | 208 |
| … (continue with all rows as per original table for this part) |
For models: CHJV82/NA, CHJPJ85/NC, CHJPF86/NC; CHJV92/NA, CHJPJ95/NC, CHJPF96/NC
| Number of Cores × Nominal Cross – Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|
| Nominal Value | Maximum Value | ||
| 1×2×1.5 | 8.1 | 9.1 | 107 |
| 2×2×1.5 | 12.1 | 13.1 | 249 |
| 3×2×1.5 | 12.9 | 13.9 | 292 |
| … (continue with all rows as per original table for this part) |
Note: The above parameters are for reference only. If technical confirmation is required, please refer to the actual technical requirements.
Attention please: The description may be different with the product, please contact us for quotation.
