Shipboard VFD Power Cable
Model Specifications
CJ85/SC-VFD/CBPJ85/SC, CJ86/SC-VFD/CBPJ86/SC

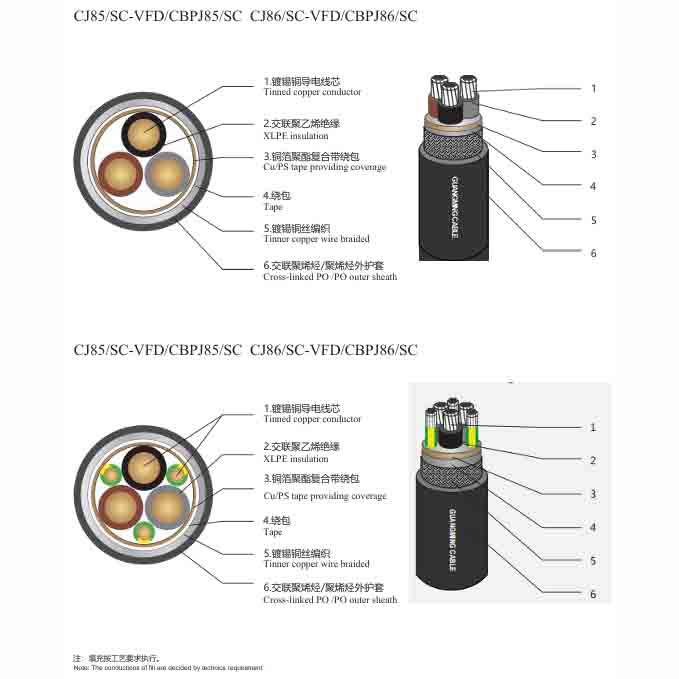

Cable Structure Diagram and Component Description
First Diagram Type
- Tinned copper conductor
- XLPE insulation
- Cu/PS tape providing coverage
- Tape
- Tinner copper wire braided
- Cross-linked PO/PO outer sheath
Second Diagram Type (with similar components as above, visual representation differs)
- Tinned copper conductor
- XLPE insulation
- Cu/PS tape providing coverage
- Tape
- Tinner copper wire braided
- Cross-linked PO/PO outer sheath
Note: The conductors of III are decided by technics requirement.
Technical Parameters Table
0.6/1kV
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJ85/SC-VFD/CBPJ85/SC, CJ86/SC-VFD/CBPJ86/SC | 3×4 | 11.3 | 12.3 | 263 |
| 3×6 | 12.5 | 13.5 | 337 | |
| 3×10 | 14.9 | 15.9 | 498 | |
| … (continue with all rows as per original table) |
0.6/1kV (another set, likely different class or specification, marked as CLASS 5 in original but repeated structure)
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJ85/SC-VFD/CBPJ85/SC, CJ86/SC-VFD/CBPJ86/SC (CLASS 5) | 3×4 | 11.4 | 12.4 | 333 |
| 3×6 | 12.6 | 13.6 | 405 | |
| 3×10 | 14.9 | 15.9 | 581 | |
| … (continue with all rows as per original table) |
1.8/3kV
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJPJ85/SC-VFD/CBPJPJ85/SC, CJPJ86/SC-VFD/CBPJPF86/SC (CLASS 5) | 3×10 | 22.6 | 24.1 | 798 |
| 3×16 | 25.0 | 26.5 | 1029 | |
| 3×25 | 27.8 | 29.3 | 1364 | |
| … (continue with all rows as per original table) |
Note: The above parameters are for reference only. If technical confirmation is required, please refer to the actual technical requirements.
Attention please: The description may be different with the product, please contact us for quotation.
