XLPE Insulation Shipboard Flame Retardance Symmetrical Communication Cable
Model Specifications
CHJV/DA, SACHJPJ/SC, CHJPF/SC; CHJV80/DA, SACHJPJ80/SC, CHJPF80/SC; CHJV90/DA, SACHJPJ90/SC, CHJPF90/SC; CHJV82/DA, SACHJPJ85/SC, CHJPF86/SC; CHJV92/DA, SACHJPJ95/SC, CHJPF96/SC

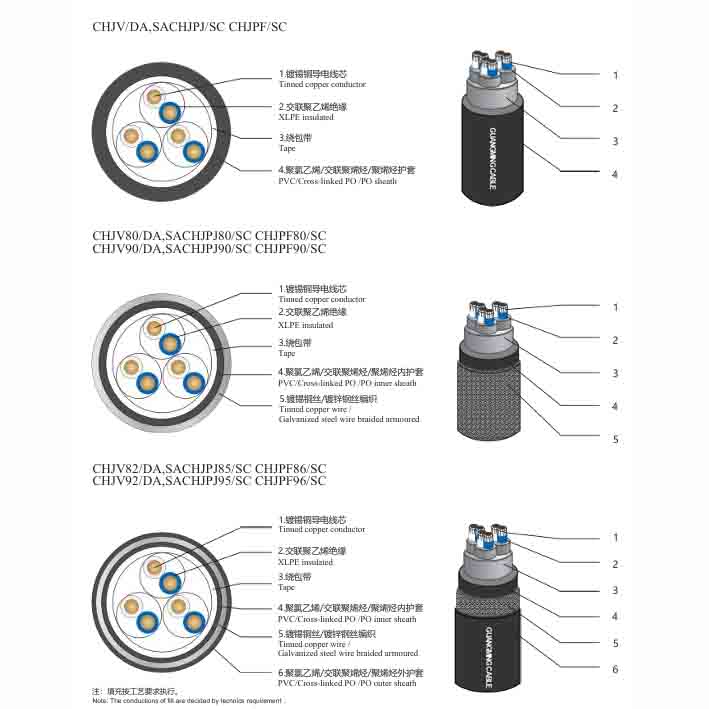

Cable Structure Diagram and Component Description
First Structure (for basic models like CHJV/DA etc.)
- Tinned copper conductor
- XLPE insulated
- Tape
- PVC/Cross – linked PO/PO sheath
Second Structure (for models with inner sheath and armour like CHJV80/DA etc.)
- Tinned copper conductor
- XLPE insulated
- Tape
- PVC/Cross – linked PO/PO inner sheath
- Tinned copper wire / Galvanized steel wire braided armoured
Third Structure (for more complex models like CHJV82/DA etc.)
- Tinned copper conductor
- XLPE insulated
- Tape
- PVC/Cross – linked PO/PO inner sheath
- Tinned copper wire / Galvanized steel wire braided armoured
- PVC/Cross – linked PO/PO outer sheath
Note: The conductions of fill are decided by technics requirement.
Technical Parameters Table (150/250V, 90°C)
For models: CHJV/DA,SA; CHJV80/DA,SA; CHJV90/DA,SA; CHJV82/DA,SA; CHJV92/DA,SA
| Number of Cores × Nominal Cross – Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|
| Nominal Value | Maximum Value | ||
| 1×2×0.75 | 5.7 | 6.7 | 56 |
| 2×2×0.75 | 8.0 | 9.0 | 86 |
| 3×2×0.75 | 8.5 | 9.5 | 107 |
| … (continue with all rows as per original table for this part) |
Another set of parameters (for different core – cross – section combinations or same models with more details)
| Number of Cores × Nominal Cross – Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|
| Nominal Value | Maximum Value | ||
| 1×2×1.5 | 7.0 | 8.0 | 87 |
| 2×2×1.5 | 10.2 | 11.2 | 139 |
| 3×2×1.5 | 11.0 | 12.0 | 183 |
| … (continue with all rows as per original table for this section) |
Note: The above parameters are for reference only. If technical confirmation is required, please refer to the actual technical requirements.
Attention please: The description may be different with the product, please contact us for quotation.
