Insulation shipboard power cable
1. CEFP/DA, SACEHP/DA, SACEVP/DA, SACEFRP/DA, SACEPJP/SC, CEPFP/SC

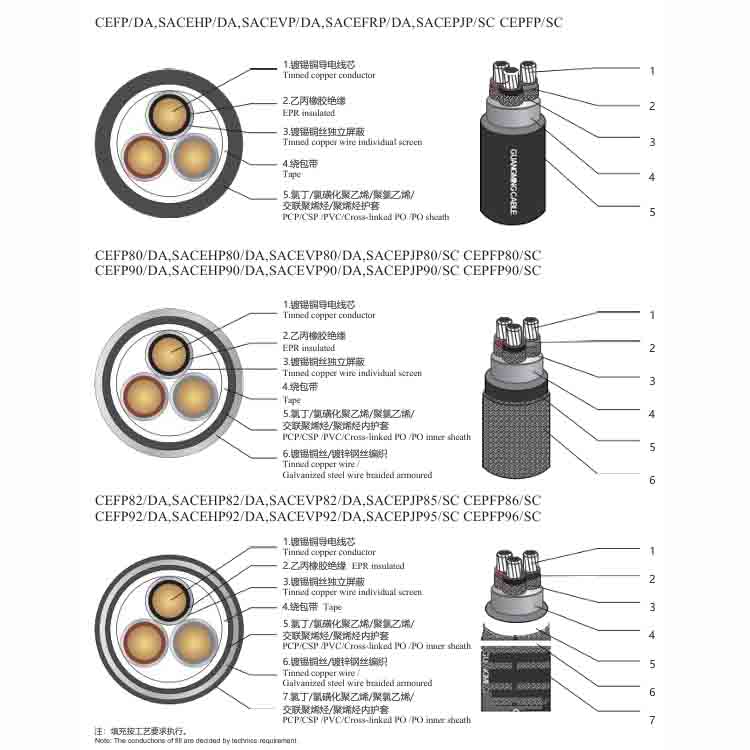

- Cross – sectional View:
-
- Tinned copper conductor
-
- EPR insulated
-
- Tinned copper wire individual screen
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene sheath (PCP/CSP/PVC/Cross – linked PO/PO sheath)
-
2. CEFP80/DA, SACEHP80/DA, SACEVP80/DA, SACEPJP80/SC, CEPFP80/SC, CEFP90/DA, SACEHP90/DA, SACEVP90/DA, SACEPJP90/SC, CEPFP90/SC
- Cross – sectional View:
-
- Tinned copper conductor
-
- EPR insulated
-
- Tinned copper wire individual screen
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene inner sheath (PCP/CSP/PVC/Cross – linked PO/PO inner sheath)
-
- Tinned copper wire/galvanized steel wire braided armoured
-
3. CEFP82/DA, SACEHP82/DA, SACEVP82/DA, SACEPJP85/SC, CEPFP86/SC, CEFP92/DA, SACEHP92/DA, SACEVP92/DA, SACEPJP95/SC, CEPFP96/SC
- Cross – sectional View:
-
- Tinned copper conductor
-
- EPR insulated
-
- Tinned copper wire individual screen
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene inner sheath (PCP/CSP/PVC/Cross – linked PO/PO inner sheath)
-
- Tinned copper wire/galvanized steel wire braided armoured
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene outer sheath (PCP/CSP/PVC/Cross – linked PO/PO outer sheath)
-
Note: The conductors of fill are decided by technics requirement.
Technical Data Tables
Table 1: For CEFP/DA, SA, CEFP80/DA, SA, CEFP90/DA, SA, CEFP82/DA, SA, CEFP92/DA, SA (90°C)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 1×1 | 6.1 | 7.1 | 80 | 7.7 | 8.7 | 155 |
| 1×1.5 | 6.8 | 7.8 | 108 | 8.4 | 9.4 | 190 |
| … (all rows as in original table 11)… | ||||||
| 3×185 | 55.5 | 57.5 | 8412 | 58.7 | 60.7 | 10042 |
Table 2: For CEFP/DA, SA, CEFP80/DA, SA, CEFP90/DA, SA, CEFP82/DA, SA, CEFP92/DA, SA (another set of data in original table 12)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 4×1.5 | 12.1 | 13.1 | 272 | 13.3 | 14.3 | 391 |
| 4×2.5 | 14.1 | 15.1 | 387 | 15.3 | 16.3 | 500 |
| … (all rows as in original table 12)… | ||||||
| 37×2.5 | 57.8 | 59.8 | 2193 | 60.1 | 62.1 | 2560 |
The above parameters are for reference only, and the actual values shall prevail.
Attention please: The description may be different with the product, please contact us for quotation.
