XLPE Insulation fire resisting ship power cable

XLPE Insulation fire resisting ship power cable

1. CJV/NA, CJPJ/NC, CJPF/NC, CJVR/NA, CJPJR/NC, CJPFR/NC

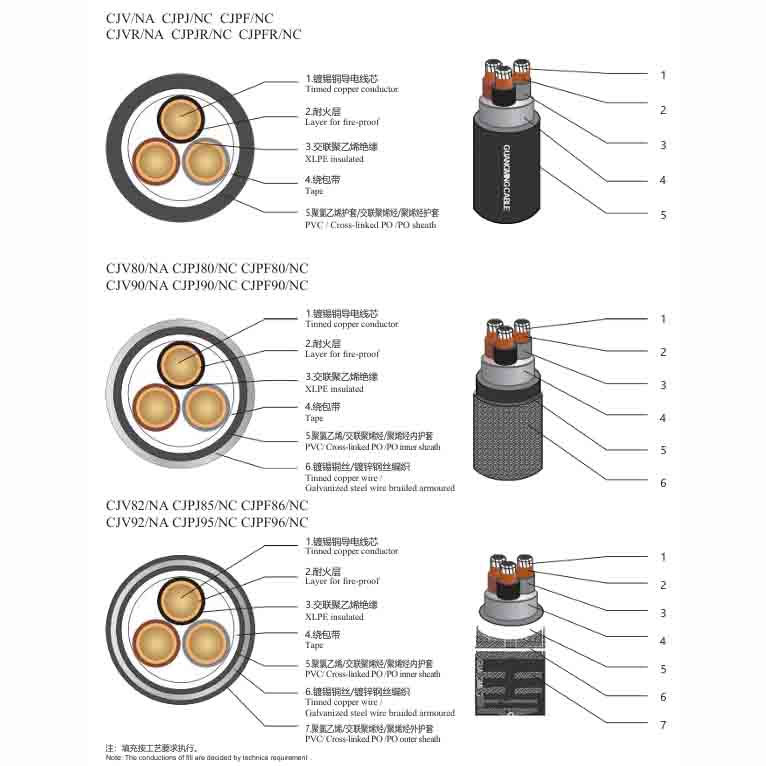

• Cross – sectional View:
  • 1. Tinned copper conductor
  • 2. Layer for fire – proof
  • 3. Cross – linked polyethylene insulation (XLPE insulated)
  • 4. Tape
  • 5. PVC/Cross – linked PO/PO sheath (PVC/Cross – linked PO/PO sheath)

2. CJV80/NA, CJPJ80/NC, CJPF80/NC, CJV90/NA, CJPJ90/NC, CJPF90/NC

• Cross – sectional View:
  • 1. Tinned copper conductor
  • 2. Layer for fire – proof
  • 3. Cross – linked polyethylene insulation (XLPE insulated)
  • 4. Tape
  • 5. PVC/Cross – linked PO/PO inner sheath (PVC/Cross – linked PO/PO inner sheath)
  • 6. Tinned copper wire/galvanized steel wire braided armoured

3. CJV82/NA, CJPJ85/NC, CJPF86/NC, CJV92/NA, CJPJ95/NC, CJPF96/NC

• Cross – sectional View:
  • 1. Tinned copper conductor
  • 2. Layer for fire – proof
  • 3. Cross – linked polyethylene insulation (XLPE insulated)
  • 4. Tape
  • 5. PVC/Cross – linked PO/PO inner sheath (PVC/Cross – linked PO/PO inner sheath)
  • 6. Tinned copper wire/galvanized steel wire braided armoured
  • 7. PVC/Cross – linked PO/PO outer sheath (PVC/Cross – linked PO/PO outer sheath)

Note: The conductors of fill are decided by technics requirement.

Technical Data Tables

Table 1: For CJV/NA, CJV80/NA, etc. (90°C)

Table 2: For CJV/NA, CJV80/NA, etc. (another set of data in original table 28)

Table 3: For CJ85/NC, CJ86/NC, etc. (original table 29)

Table 4: For CJV/NA, CJPJ/NC, etc. (original table 30)

The above parameters are for reference only, and the actual values shall prevail.

Attention please: The description may be different with the product, please contact us for quotation.
