EPR Insulation Shipboard Communication Cable

EPR Insulation Shipboard Communication Cable

Model Specifications

CHEFP/DA, SACHEVP/DA, SACHEPJ/SC, CHEPFP/SC; CHEFP80/DA, SACHEVP80/DA, SACHEPJ80/SC, CHEPFP80/SC; CHEFP90/DA, SACHEVP90/DA, SACHEPJ90/SC, CHEPFP90/SC; CHEFP82/DA, SACHEVP82/DA, SACHEPJ85/SC, CHEPFP86/SC; CHEFP92/DA, SACHEVP92/DA, SACHEPJ95/SC, CHEPFP96/SC

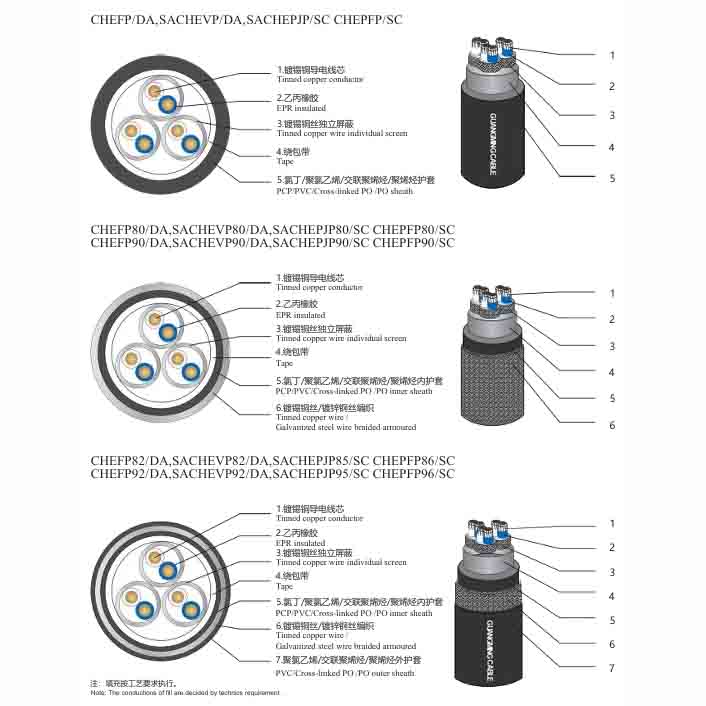

Cable Structure Diagram and Component Description

First Structure Diagram (for basic models like CHEFP/DA etc.)

1. Tinned copper conductor
2. EPR insulated
3. Tinned copper wire individual screen
4. Tape
5. PCP/PVC/Cross – linked PO/PO sheath

Second Structure Diagram (for models with inner sheath and armour like CHEFP80/DA etc.)

1. Tinned copper conductor
2. EPR insulated
3. Tinned copper wire individual screen
4. Tape
5. PCP/PVC/Cross – linked PO/PO inner sheath
6. Tinned copper wire / Galvanized steel wire braided armoured

Third Structure Diagram (for more complex models like CHEFP82/DA etc.)

1. Tinned copper conductor
2. EPR insulated
3. Tinned copper wire individual screen
4. Tape
5. PCP/PVC/Cross – linked PO/PO inner sheath
6. Tinned copper wire / Galvanized steel wire braided armoured
7. PVC/Cross – linked PO/PO outer sheath

Note: The conductions of fill are decided by technics requirement.

Technical Parameters Table (150/250V, 90°C)

For models: CHEFP/DA,SA; CHEFP80/DA,SA; CHEFP90/DA,SA; CHEFP82/DA,SA; CHEFP92/DA,SA (with tinned copper wire individual screen)

Another set of parameters (for different core – cross – section combinations or same models with more details)

Attention please: The description may be different with the product, please contact us for quotation.
