Shipboard wire
Voltage: 0.6/1kV
Temperature: CBVR/DA 70°C, CBYJR/DC 90°C

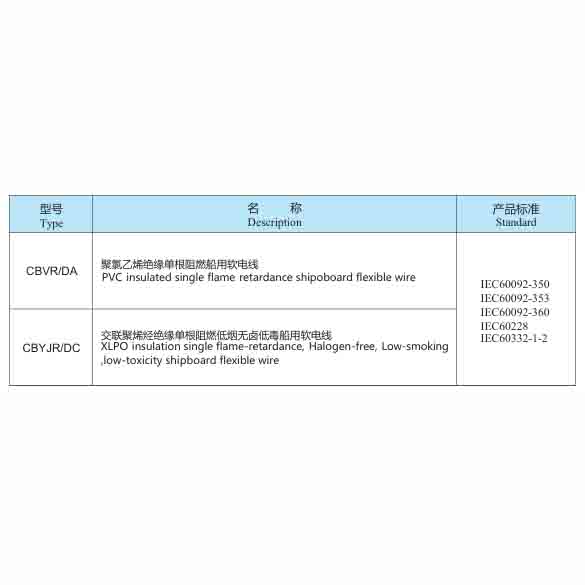

| Type | Description | Product Standard |
|---|---|---|
| CBVR/DA | PVC insulated single flamer retardance shipboard flexible wire | IEC60092-350, IEC60092-353, IEC60092-360 |
| CBYJR/DC | XLPO insulation single flame-retardance, Halogen-free, Low-smoking, low-toxicity shipboard flexible wire | IEC60228, IEC60332-1-2 |
Specifications
| Size (mm²) | CBVR/DA Calculated diameter | Calculated mass (kg/km) | CBYJR/DC Calculated diameter | Calculated mass (kg/km) | ||
|---|---|---|---|---|---|---|
| nom (mm) | max (mm) | nom (mm) | max (mm) | |||
| 0.5 | 2.5 | 2.8 | 11 | 2.7 | 3.2 | 13 |
| 0.75 | 2.7 | 3.2 | 14 | 2.9 | 3.4 | 17 |
| 1 | 2.9 | 3.4 | 17 | 3.1 | 3.6 | 20 |
| 1.5 | 3.6 | 4.1 | 25 | 3.4 | 3.9 | 25 |
| 2.5 | 4.0 | 4.5 | 36 | 3.8 | 4.3 | 36 |
| 4 | 4.6 | 5.1 | 52 | 4.4 | 4.9 | 53 |
| 6 | 5.2 | 5.7 | 73 | 5.0 | 5.5 | 70 |
| 10 | 7.0 | 7.5 | 129 | 6.9 | 7.4 | 125 |
| 16 | 8.1 | 8.6 | 184 | 7.9 | 8.4 | 180 |
| 25 | 9.9 | 10.4 | 282 | 9.5 | 10.0 | 274 |
| 35 | 11.2 | 11.7 | 379 | 10.6 | 11.1 | 368 |
| 50 | 13.3 | 13.8 | 526 | 12.0 | 12.5 | 514 |
| 70 | 15.5 | 16.0 | 732 | 14.5 | 15.0 | 710 |
| 95 | 18.3 | 18.8 | 1015 | 15.8 | 16.3 | 933 |
| 120 | 20.1 | 21.1 | 1274 | 17.9 | 18.9 | 1214 |
| 150 | 21.6 | 22.6 | 1521 | 20.8 | 21.8 | 1505 |
| 185 | 24.1 | 25.1 | 1897 | 23.4 | 24.4 | 1879 |
| 240 | 27.1 | 28.1 | 2418 | 25.2 | 26.2 | 2376 |
| 300 | 30.5 | 32.0 | 3097 | 27.8 | 29.3 | 3011 |
EPR Insulation Flame-retardant Shipboard Power Cable
Voltage: 0.6/1kV
Standards
| Standard | |
|---|---|
| IEC 60092-350, 353 – Design | IEC 60092-350, 353 – Design |
| IEC 60228 – Conductor | IEC 60092-360 – Insulation & sheath |
| IEC 60092-360 – Insulation & sheath | IEC 60332-1-2 – Flame Retardant |
| IEC 60332-1-2 – Flame Retardant | IEC 60332-3-22 – Flame Retardant |
| IEC 60332-3-22 – Flame Retardant | IEC 60754 – Halogen Free |
| IEC 60754 – Halogen Free | IEC 61034 – Low Smoke |
| IEC 61034 – Low Smoke | |
| CSA 22.2 No.03(-40°C/-35°C) – Cold bend/impact (Cold type only) | CSA 22.2 No.03(-40°C/-35°C) – Cold bend/impact (Cold type only) |
| UL1581 section 1200 – Sunlight (UV)resistant (UV type only) | UL1581 section 1200 – Sunlight (UV)resistant (UV type only) |
Application
The cable is interded for power, lighting and control system of shipboard and off-shore building, and it is also available to metallurgical industry, chemical works, power plant and mine, etc.
Attention please: The description may be different with the product, please contact us for quotation.
