Ship Cable
1. CE82/DA, SACE8F/DA, SACE8H/DA, SACE85/SC, CE86/SC

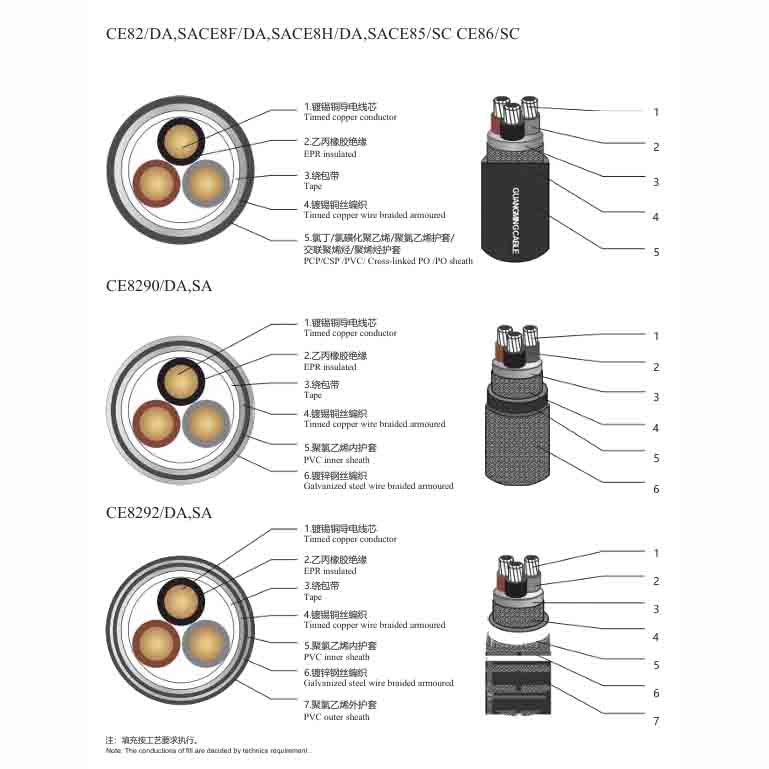

- Cross – sectional View:
-
- Tinned copper conductor
-
- EPR insulated
-
- Tape
-
- Tinned copper wire braided armoured
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride sheath/cross – linked polyethylene sheath (PC/CSP/PVC/Cross – linked PO/PO sheath)
-
2. CE8290/DA, SA
- Cross – sectional View:
-
- Tinned copper conductor
-
- EPR insulated
-
- Tape
-
- Tinned copper wire braided armoured
-
- PVC inner sheath
-
- Galvanized steel wire braided armoured
-
3. CE8292/DA, SA
- Cross – sectional View:
-
- Tinned copper conductor
-
- EPR insulated
-
- Tape
-
- Tinned copper wire braided armoured
-
- PVC inner sheath
-
- Galvanized steel wire braided armoured
-
- PVC outer sheath
-
Note: The conductors of fill are decided by technics requirement.
Technical Data Tables
Table 1: For CE82/DA, SA, CE8290/DA, SA, CE8292/DA, SA, CE85/SC, CE86/SC (90°C)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 1×1 | 6.0 | 7.0 | 73 | 7.6 | 8.6 | 138 |
| 1×1.5 | 6.7 | 7.7 | 82 | 8.3 | 9.3 | 150 |
| … (all rows as in original table 7)… | ||||||
| 3×185 | 54.9 | 56.9 | 8332 | 60.4 | 62.4 | 9440 |
Table 2: For CE82/DA, SA, CE8290/DA, SA, CE8292/DA, SA, CE85/SC, CE86/SC (another set of data in original table 8)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 4×1.5 | 11.3 | 12.3 | 225 | 12.5 | 13.5 | 323 |
| 4×2.5 | 13.1 | 14.1 | 325 | 14.3 | 15.3 | 437 |
| … (all rows as in original table 8)… | ||||||
| 37×2.5 | 33.6 | 35.1 | 2138 | 34.8 | 36.3 | 2505 |
Table 3: For CE8F/DA, SA, CE8H/DA, SA, CE8F8/DA, SA, CE8H8/DA, SA (original table 9)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|
| nom | max | nom | max | |
| 1×1 | 6.1 | 7.1 | 86 | 8.5 |
| 1×1.5 | 6.8 | 7.8 | 114 | 9.2 |
| … (all rows as in original table 9)… | ||||
| 3×185 | 54.9 | 56.9 | 8332 | 60.7 |
The above parameters are for reference only, and the actual values shall prevail.
Attention please: The description may be different with the product, please contact us for quotation.
