Ship Communication Cable
Model Specifications
CHEFP/NA, CHEVP/NA, CHEPJP/NC, CHEPFP/NC; CHEFP80/NA, CHEVP80/NA, CHEPJP80/NC, CHEPFP80/NC; CHEFP90/NA, CHEVP90/NA, CHEPJP90/NC, CHEPFP90/NC; CHEFP82/NA, CHEVP82/NA, CHEPJP85/NC, CHEPFP86/NC; CHEFP92/NA, CHEVP92/NA, CHEPJP95/NC, CHEPFP96/NC

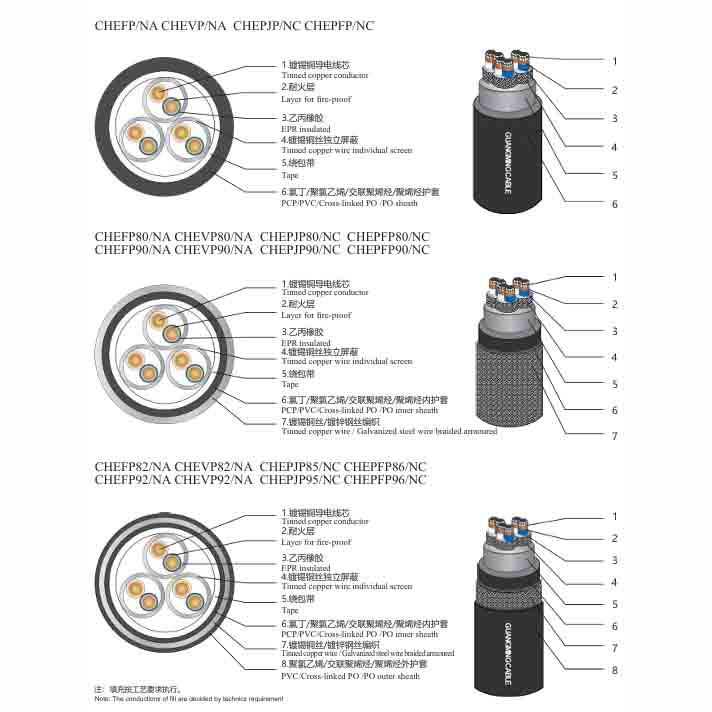

Cable Structure Diagram and Component Description
First Structure (for basic models like CHEFP/NA etc.)
- Tinned copper conductor
- Layer for fire – proof
- EPR insulated
- Tinned copper wire individual screen
- Tape
- PCP/PVC/Cross – linked PO/PO sheath
Second Structure (for models with inner sheath and armour like CHEFP80/NA etc.)
- Tinned copper conductor
- Layer for fire – proof
- EPR insulated
- Tinned copper wire individual screen
- Tape
- PCP/PVC/Cross – linked PO/PO inner sheath
- Tinned copper wire / Galvanized steel wire braided armoured
Third Structure (for more complex models like CHEFP82/NA etc.)
- Tinned copper conductor
- Layer for fire – proof
- EPR insulated
- Tinned copper wire individual screen
- Tape
- PCP/PVC/Cross – linked PO/PO inner sheath
- Tinned copper wire / Galvanized steel wire braided armoured
- PVC/Cross – linked PO/PO outer sheath
Note: The conductions of fill are decided by technics requirement.
Technical Parameters Table (150/250V, 90°C)
For models: CHEFP/NA; CHEFP80/NA,CHEFP90/NA; CHEFP82/NA,CHEFP92/NA (with tinned copper wire individual screen)
| Number of Cores × Nominal Cross – Sectional Area (Tinned copper wire individual screen) [No. of cores × nominal cross – sectional area (mm²)] | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|
| Nominal Value | Maximum Value | ||
| 1×2×0.75 | 9.4 | 10.4 | 173 |
| 2×2×0.75 | 15.6 | 16.6 | 338 |
| 3×2×0.75 | 16.8 | 17.8 | 425 |
| … (continue with all rows as per original table for this part) |
Another set of parameters (for different core – cross – section combinations or same models with more details)
| Number of Cores × Nominal Cross – Sectional Area (Tinned copper wire individual screen) [No. of cores × nominal cross – sectional area (mm²)] | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|
| Nominal Value | Maximum Value | ||
| 1×2×1.5 | 10.9 | 11.9 | 233 |
| 2×2×1.5 | 18.5 | 19.5 | 483 |
| 3×2×1.5 | 19.9 | 20.9 | 606 |
| … (continue with all rows as per original table for this section) |
Note: The above parameters are for reference only. If technical confirmation is required, please refer to the actual technical requirements.
Attention please: The description may be different with the product, please contact us for quotation.
