SIGNAL SEARCHLIGHT
Product Images and Technical Diagrams

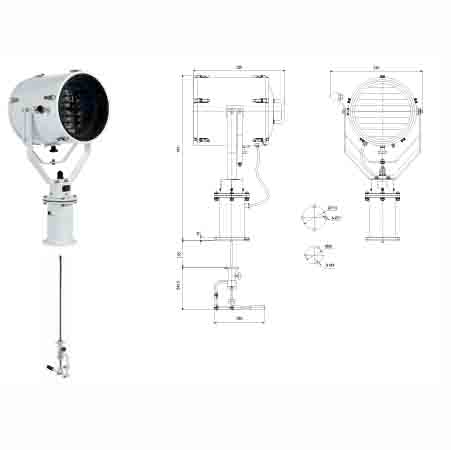

[The image presents multiple views of the signal searchlight product, including a front – view photo, a side – view photo, and two technical diagrams showing different cross – sections and dimensions. The diagrams include various measurements such as overall diameter, height, and other detailed dimensions.]
Applicable Scope
Suitable for signal exchange between various types of ships. It cannot be used for lighting purposes.
Technical Specifications
| Item | Detail |
|---|---|
| Type | TG3 – L |
| Rated Voltage | AC220V 50/60Hz |
| Power | 1000W |
| Illuminant | Halogen |
| Color | White |
| Luminous Intensity | 1,200,000cd |
| Horizontal Angle | 360° |
| Vertical Angle | +40°～ – 40° |
| Adjustment Method | Manual Regulation |
| Protection Class | IP56 |
| Cable Outside Diameter | φ10 – φ12 (Optional: φ13 – φ14) |
| Installation Method | Base – mounted Type |
| Ambient Temperature | -30℃ – +55℃ |
| Lamp Body Material | Stainless Steel |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | 34kg |
| Accessories | Lifting Ring |
Attention please: The description may be different with the product, please contact us for quotation.
