AFTER ANGLE LIGHT

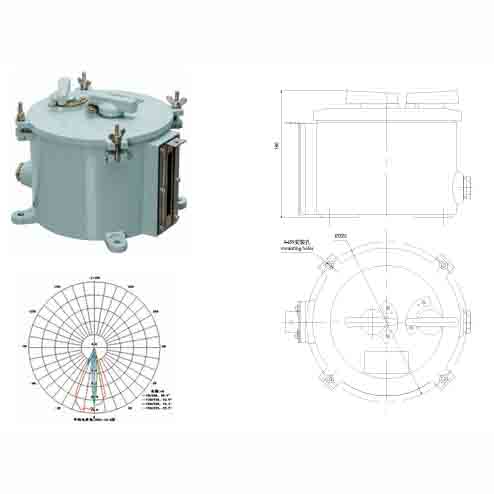

Product Images and Polar Diagram
[The image displays two views of the product and a polar diagram showing the light – emission pattern.]
Applicable Scope
Applied to the ships as lamp signal at nights and identification when the formation navigation of ships.
| Item | Detail |
|---|---|
| Type | CXH10 – N |
| Rated Voltage | AC100V～240V 50/60Hz |
| Power | 2*3W |
| Illuminant | LED |
| Color | White |
| Lamp Holder | / |
| Horizontal Arc | 10° |
| Vertical Arc | 30° |
| Visible Distance | 2n.m |
| Protection Class | IP56 |
| Cable Outside Diameter | φ6～φ12 (Optional: φ10～φ14) |
| Installation Method | Seat – mounted Type |
| Ambient Temperature | -30℃～+55℃ |
| Lamp Body Material | High – Quality Marine Aluminum Alloy |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Lamp Shade Color | Transparent |
| Weight | 5.5kg |
Attention please: The description may be different with the product, please contact us for quotation.
