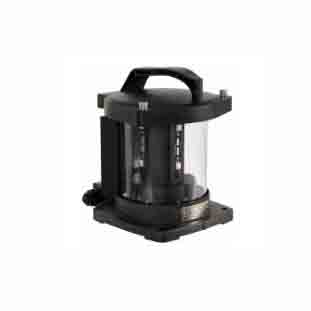

NAVIGATION SIGNAL LIGHT
Applicable Scope
Applied to the ships with the length of 50m or above as lamp signal liaison when night navigation.
| Name | Port Side Light | Starboard Light | Masthead Light | Stern Light | All – round Light |
|---|---|---|---|---|---|
| Type | CXH10 – 102PL | CXH15 – 102PL | CXH35 – 102PL | CXH26 – 102PL | CXH29 – 102PL |
| Rated Voltage Rated Voltage | AC/DC 24V, AC110 – 240V 50/60Hz | ||||
| Power Power | 2*4W | 2*4W | 2*4W | 2*4W | 2*4W |
| Light Source | LED | ||||
| Luminous Intensity | 100,000cd | ||||
| Color | Red | Green | White | White | White/Yellow |
| Horizontal Arc Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° |
| Vertical Arc Vertical Arc | ±5° | ||||
| Visibility Distance | 3nm | 3nm | 6nm | 3nm | 3nm |
| Protection Class | IP56/IP67 | ||||
| Out – side Diameter | φ191.2 (Optional: φ110 – φ154) | ||||
| Installation Method | Base – mounted Type | ||||
| Ambient Temperature | -30℃ ~ +55℃ | ||||
| Lamp Body Material | Engineering Plastics | ||||
| Gland Material | Nylon (Optional: Brass) | ||||
| Lamp Shade Material | Engineering Plastics PC | ||||
| Lamp Shade Color | Transparent | ||||
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.8kg |
Attention please: The description may be different with the product, please contact us for quotation.
