SHIP SEARCHLIGHT
Product Images and Technical Diagrams

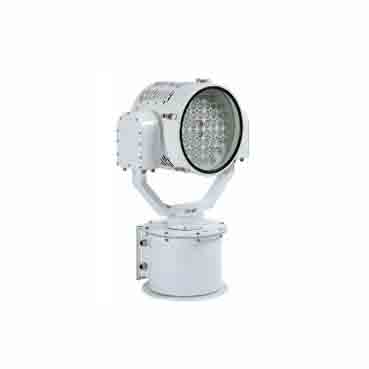

[The image displays multiple views of the TZ2 – A searchlight: a front – view photo showing the lamp head with numerous LED elements, a side – view photo, a rear – view photo, and two technical diagrams. The diagrams provide cutting and setting dimensions with various measurements such as overall height, diameter, and other detailed size specifications.]
Design Patent
Design Patent: ZL202430361706.4
Applicable Scope
Suitable for far – distance illumination and search during night navigation on ships, yachts, and river – sea going ships. It is especially useful for illuminating narrow waterways, internal river channels, and other complex water areas, as well as for surface search when ships cross such areas as narrow channels and inland river channels. It is also suitable for projecting illumination in outdoor areas such as docks, construction sites, and storage yards.
Technical Specifications
| Item | Detail |
|---|---|
| Type | TZ2 – A |
| Rated Voltage | AC220V 50/60Hz |
| Power | 300W |
| Power Factor | ≥0.9 |
| Illuminant | LED |
| Color | White |
| Color Rendering Index | Ra≥80 |
| Color Temperature | 5700K |
| Luminous Intensity | 2,610,000cd |
| Exposure Distance | 1500m (1 lux) |
| Adjustment Method | Electric Regulation |
| Horizontal Angle | 360° |
| Elevation Angle | +40°, Depression Angle 30° |
| Protection Class | IP66 |
| Cable Outside Diameter | φ10 – φ16 |
| Installation Method | Base – mounted Type |
| Ambient Temperature | -30℃ – +55℃ |
| Lamp Body Material | Stainless Steel |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | Lamp Body: 70kg; Controller: 1.5kg |
| Accessories | Controller |
Attention please: The description may be different with the product, please contact us for quotation.
