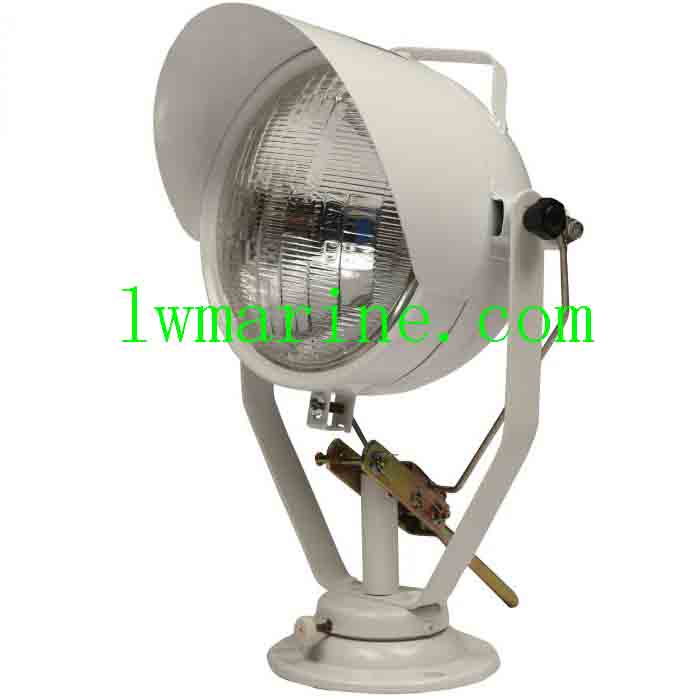

Marine SPOT LIGHT
Product Images and Technical Diagrams

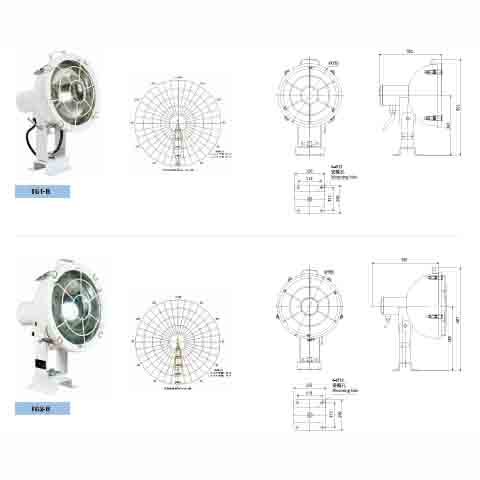

[The image shows two types of spot lights: TG1 – B and TG2 – B, each with multiple views including front, side, and back views, along with technical diagrams indicating dimensions and light – emission patterns.]
TG1 – B
| Item | Detail |
|---|---|
| Type | TG1 – B |
| Rated Voltage | AC110V / 220V |
| Power | 50W |
| Illuminant | Incandescent Bulb |
| Color | White |
| Lamp Holder | Screw – in Bulb |
| Luminous Flux | 2500lm |
| Adjustment Method | Manual Regulation |
| Vertical Angle | 135° |
| Horizontal Angle | 360° |
| Protection Class | IP56 |
| Cable Outside Diameter | φ6 – φ12 (Optional: φ10 – φ14) |
| Installation Method | Surface – mounted Type |
| Ambient Temperature | -30℃ – +55℃ |
| Lamp Body Material | Steel |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | 5kg |
TG2 – B
| Item | Detail |
|---|---|
| Type | TG2 – B |
| Rated Voltage | AC110V / 220V |
| Power | 100W |
| Illuminant | Incandescent Bulb |
| Color | White |
| Lamp Holder | Screw – in Bulb |
| Luminous Flux | 4800lm |
| Adjustment Method | Manual Regulation |
| Vertical Angle | 135° |
| Horizontal Angle | 360° |
| Protection Class | IP56 |
| Cable Outside Diameter | φ6 – φ12 (Optional: φ10 – φ14) |
| Installation Method | Surface – mounted Type |
| Ambient Temperature | -30℃ – +55℃ |
| Lamp Body Material | Steel |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | 5.7kg |
Applicable Scope
Applied to illumination of ship, port, dock, station and plaza, etc.
Attention please: The description may be different with the product, please contact us for quotation.
