FLASHING SIGNAL LIGHT

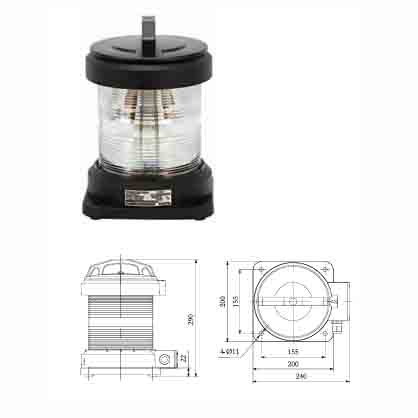

Product Image and Dimensions Diagram
[The image shows the product (a black flashing signal light) and a dimensions diagram with measurements: height 200, base – related dimensions 240, 200, 155, and cable – related dimension 4 – φ11.]
Applicable Scope
It is suitable to be used as flashing light for huge vessel and vessel carrying dangerous cargo during navigation in different waters. Also applicable as a signal light for large ships, dangerous goods ships, and other vessels.
| Item | Detail |
|---|---|
| Rated Voltage | AC100V～240V 50/60Hz, DC24V |
| Power | 8W |
| Illuminant | LED |
| Color | Red/Green/White/Yellow |
| Flash Frequency | 150 times/minute (Optional: 120 times/minute, 180 times/minute) |
| Horizontal Arc | 360° |
| Vertical Arc | ±5° |
| Visible Distance | 3n.m |
| Protection Class | IP66 |
| Cable Outside Diameter | φ6～φ12 (Optional: φ10～φ14) |
| Installation Method | Seat – mounted Type |
| Ambient Temperature | -30℃～+55℃ |
| Lamp Body Material | Engineering Plastic |
| Gland Material | Nylon (Optional: Brass) |
| Lamp Shade Material | Engineering Plastic PC |
| Lamp Shade Color | Transparent |
| Weight | 3.5kg |
Attention please: The description may be different with the product, please contact us for quotation.
