MARINE SEARCH LIGHT

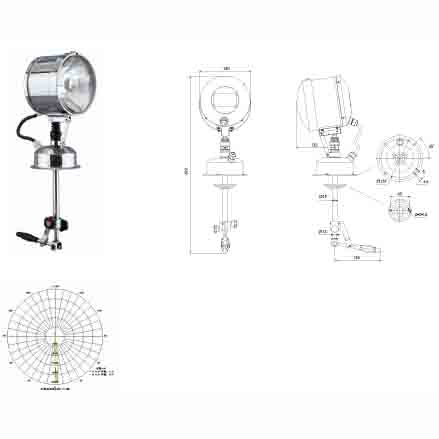

Product Images and Dimensions Diagram
[The image displays the search light product from multiple angles (front, side, top – down), along with a dimensions diagram showing various measurements such as overall height 215, base diameter 140, and other detailed dimensions.]
Applicable Scope
Applied to illumination when night navigation for small and medium ships, and also suitable for maintenance and warning illumination in mines, oil platforms, etc.
| Item | Detail |
|---|---|
| Type | TG10 |
| Rated Voltage | 24V/220V |
| Power | 45W |
| Illuminant | Halogen – sealed – beam Lamp |
| Color | White |
| Lamp Holder | Special Bulb |
| Luminous Flux | 1400lm |
| Adjustment Method | Manual Regulation |
| Horizontal Angle | 360° |
| Vertical Angle | 70° |
| Protection Class | IP56 |
| Cable Outside Diameter | φ8 – φ12 (Optional: φ10 – φ14) |
| Installation Method | Surface – mounted Type |
| Ambient Temperature | -30℃ – +55℃ |
| Lamp Body Material | Brass |
| Gland Material | Brass |
| Lamp Shade Material | Glass |
| Weight | 3.85kg |
| Accessories | Lifting Ring |
Attention please: The description may be different with the product, please contact us for quotation.
