SUEZ CANAL SEARCHLIGHT
Product Images and Technical Diagrams

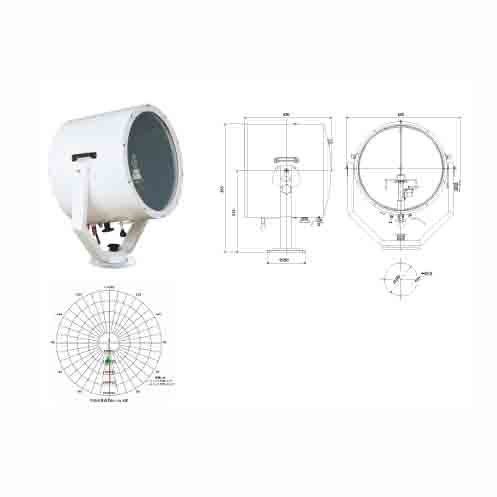

[The image shows multiple views of the TZ5 Suez Canal searchlight: a front – view photo, a side – view photo, and two technical diagrams. The diagrams include detailed cutting and setting dimensions with various measurements such as overall diameter, height, and other size – related specifications.]
Applicable Scope
Suitable for various types of ships to illuminate in the Suez Canal, narrow waterways and night navigation, and to search for obstacles on the water surface.
Technical Specifications
| Item | Detail |
|---|---|
| Type | TZ5 |
| Rated Voltage | AC220V |
| Power | 2000W; 3000W |
| Power Factor | ≥0.85 |
| Illuminant | Tungsten Halogen Lamp |
| Color | White |
| Lamp Holder | GY16q |
| Luminous Intensity | 2,200,000cd; 3,000,000cd |
| Exposure Distance | 1500m (0.5 lux); 2000m (0.3 lux) |
| Adjustment Method | Manual Regulation |
| Horizontal Angle | 360° |
| Elevation Angle | +40°, Depression Angle 30° |
| Protection Class | IP56 |
| Cable Outside Diameter | φ10 – φ16 |
| Installation Method | Base – mounted Type |
| Ambient Temperature | -20℃ – +55℃ |
| Lamp Body Material | High – Quality Marine Aluminum Alloy |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | 46kg |
Attention please: The description may be different with the product, please contact us for quotation.
