FLOOD LIGHT
Product Images and Dimensions Diagrams

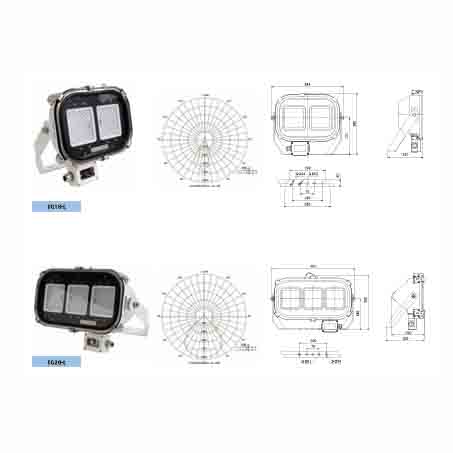

[The image displays two types of flood lights, TG18 – L and TG20 – L, each shown from multiple angles (front, side, top – down), along with their respective dimensions diagrams indicating various measurements such as overall size, mounting hole details, etc.]
TG18 – L
| Item | Detail |
|---|---|
| Type | TG18 – L |
| Rated Voltage | AC220V, AC110V – 240V 50/60Hz, DC24V |
| Power | 50W |
| Power Factor | ≥0.9 |
| Illuminant | LED |
| Color | White |
| Luminous Flux | 6000lm |
| Color Rendering Index | Ra≥70 |
| Color Temperature | 5700K (Optional: 3000K, 4000K, 5000K) |
| Adjustment Method | Manual Regulation |
| Horizontal Angle | 360° |
| Vertical Angle | Elevation Angle 60°, Depression Angle 60° |
| Protection Class | IP66 |
| Cable Outside Diameter | φ10 – φ12 (Optional: φ10 – φ14) |
| Installation Method | Surface – mounted Type |
| Ambient Temperature | -40℃ – +55℃ |
| Lamp Body Material | Stainless Steel |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | 6.5kg |
TG20 – L
| Item | Detail |
|---|---|
| Type | TG20 – L |
| Rated Voltage | AC220V, AC110V – 240V 50/60Hz, DC24V |
| Power | 100W |
| Power Factor | ≥0.9 |
| Illuminant | LED |
| Color | White |
| Luminous Flux | 12000lm |
| Color Rendering Index | Ra≥70 |
| Color Temperature | 5700K (Optional: 3000K, 4000K, 5000K) |
| Adjustment Method | Manual Regulation |
| Horizontal Angle | 360° |
| Vertical Angle | Elevation Angle 60°, Depression Angle 60° |
| Protection Class | IP66 |
| Cable Outside Diameter | φ10 – φ12 (Optional: φ10 – φ14) |
| Installation Method | Surface – mounted Type |
| Ambient Temperature | -40℃ – +55℃ |
| Lamp Body Material | Stainless Steel |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | 10kg |
Applicable Scope
Applied to illumination in outdoor places such as ships, dock ports, storage yards and stadiums.
