Morse Signal Light
Product Image and Technical Diagram

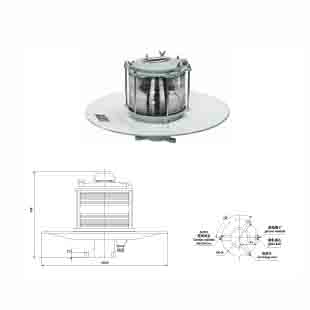

[The image shows the Morse signal light product from a top – view perspective and a technical diagram with dimensions: overall diameter 300, central part height 150, and other detailed dimensions such as 125, 4 – φ11, etc.]
Applicable Scope
Applied to identification of the Morse light communications of ships.
| Item | Detail |
|---|---|
| Name | Morse Signal Light |
| Type | CXD7 – L |
| Rated Voltage | AC220V 50/60Hz |
| Power | 100W |
| Light Source | LED (In the original, it just says “LED” without more specific type info in this table) |
| Color | White |
| Lamp Holder | / |
| Horizontal Arc | 360° |
| Vertical Arc | ±3° |
| Visible Distance | Not specified in the given content |
| Protection Class | IP56 |
| Cable Outside Diameter | 4 – φ11 |
| Installation Method | Not clearly specified in the given content |
| Ambient Temperature | -30℃～+55℃ |
| Lamp Body Material | High – quality Marine Aluminum Alloy |
| Gland Material | Brass |
| Lamp Shade Material | Engineering Plastics PC |
| Lamp Shade Color | Transparent |
| Weight | 4.5kg |
Attention please: The description may be different with the product, please contact us for quotation.
