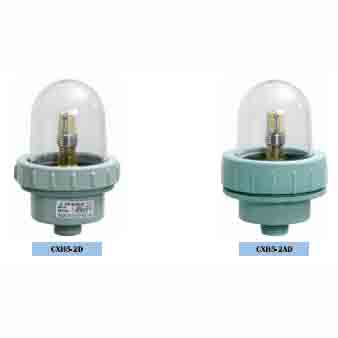

SHIP SIGNAL LIGHT
Applicable Scope
Applied to the ships as lamp signal when night navigation.
| Name | Signal Light | |||
|---|---|---|---|---|
| Type | CXH5 – 2 | CXH5 – 2D | CXH5 – 2A | CXH5 – 2AD |
| Rated Voltage | 24V | 24V | 24V | 24V |
| Power | 5W | 5W | 5W | 5W |
| Illuminant | Incandescent Lamp | LED Bulbs | Incandescent Lamp | LED Bulbs |
| Lamp Holder | BA15d | – | BA15d | – |
| Horizontal Arc | 360° | 360° | 360° | 360° |
| Vertical Arc | ±5° | |||
| Visible Distance | 2nm | |||
| Protection Class | IP56 | |||
| Cable Outside Diameter | φ6 – φ12 | |||
| Installation Method | Screw Thread | |||
| Ambient Temperature | -30℃ ~ +55℃ | |||
| Lamp Body Material | High – quality Marine Aluminum Alloy | |||
| Gland Material | Engineering Plastics PC | |||
| Lamp Shade Material | Engineering Plastics PC | |||
| Lamp Shade Color | Red/Green/Yellow/White/Blue/Transparent | |||
| Weight | 0.30kg | 0.30kg | 0.30kg | 0.30kg |
Attention please: The description may be different with the product, please contact us for quotation.
