Suez Signal Light
Product Images and Installation Diagram

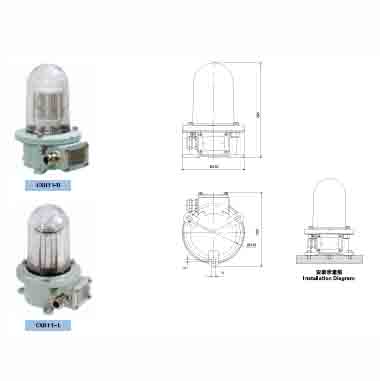

[The image shows two variants of the product (CXH11 – D and CXH11 – L) along with an installation diagram indicating dimensions.]
Applicable Scope
Applied to the ships with the length of 50m or above as large – size signal lamps when night navigation.
| Item | Signal Light (CXH11) | ||
|---|---|---|---|
| CXH11 – D | CXH11 – M0 | CXH11 – L | |
| Rated Voltage | AC220V, AC110V, AC/DC24V | AC220V, AC110V, AC/DC24V | AC220V, AC110V, AC/DC24V |
| Power | 150W | 100W | 60W (LED) |
| Illuminant | Incandescent Lamp | Incandescent Lamp | LED Lamp |
| Color | White, Red, Yellow, Green, Blue | White, Red, Yellow, Green, Blue | White, Red, Yellow, Green, Blue |
| Horizontal Arc | 360° | 360° | 360° |
| Vertical Arc | ±3° | ±3° | ±3° |
| Visible Distance | 3n.m | 3n.m | 3n.m |
| Protection Class | IP56 | IP56 | IP56 |
| Cable Outside Diameter | φ6～φ12 (Optional: φ10～φ14) | φ6～φ12 (Optional: φ10～φ14) | φ6～φ12 (Optional: φ10～φ14) |
| Installation Method | Bracket – mounted Type | Bracket – mounted Type | Bracket – mounted Type |
| Ambient Temperature | -40℃～+55℃ | -40℃～+55℃ | -40℃～+55℃ |
| Lamp Body Material | Brass | Brass | Brass |
| Lamp Shade Material | Engineering Plastics PC | Engineering Plastics PC | Engineering Plastics PC |
| Lamp Shade Color | Transparent | Transparent | Transparent |
| Weight | 5.0kg | 4.5kg | 4.0kg |
Attention please: The description may be different with the product, please contact us for quotation.
