Shipboard Medium Voltage Power Cable
Model Specifications
CJPJ85/SC, CJPF86/SC, CJPJ95/SC, CJPF96/SC

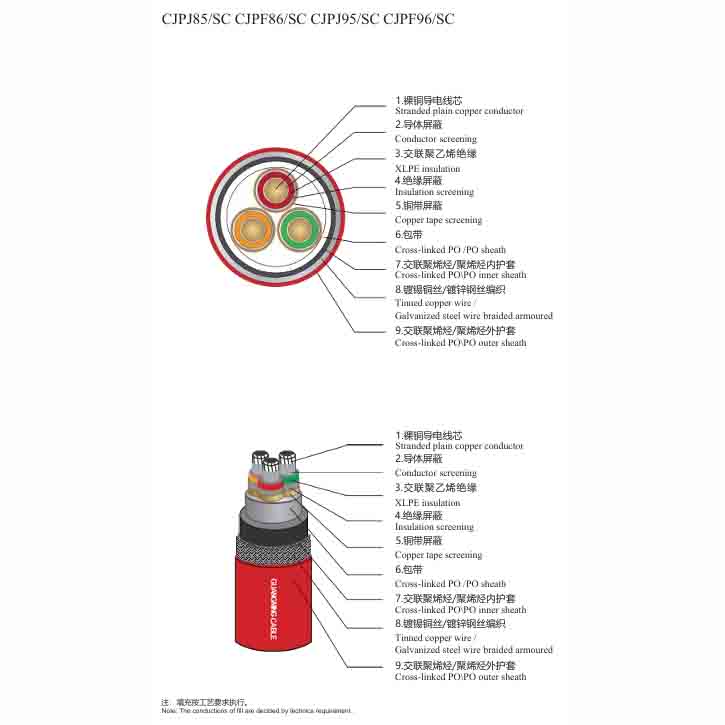

Cable Structure Diagram and Component Description
Top Diagram
- Stranded plain copper conductor
- Conductor screening
- XLPE insulation
- Insulation screening
- Copper tape screening
- Packing tape (if applicable, implied by structure)
- Cross-linked PO/PO inner sheath
- Tinned copper wire / Galvanized steel wire braided armoured
- Cross-linked PO/PO outer sheath
Bottom Diagram (with similar components as above, visual representation differs slightly in layer arrangement display)
- Stranded plain copper conductor
- Conductor screening
- XLPE insulation
- Insulation screening
- Copper tape screening
- Packing tape (if applicable)
- Cross-linked PO/PO inner sheath
- Tinned copper wire / Galvanized steel wire braided armoured
- Cross-linked PO/PO outer sheath
Note: The conductions of fill are decided by technics requirement.
Technical Parameters Table
3.6/6kV, 90°C
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJPJ85/SC, CJPF86/SC, CJPJ95/SC, CJPF96/SC | 1×10 | 19.2 | 20.7 | 630 |
| 1×16 | 20.9 | 22.9 | 750 | |
| 1×25 | 22.7 | 24.7 | 900 | |
| … (continue with all rows as per original table for this voltage level) |
6/10kV, 90°C
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJPJ85/SC, CJPF86/SC, CJPJ95/SC, CJPF96/SC | 1×16 | 23.7 | 25.7 | 820 |
| 1×25 | 25.2 | 27.2 | 950 | |
| 1×35 | 26.5 | 28.5 | 1100 | |
| … (continue with all rows as per original table for this voltage level) |
8.7/15kV, 90°C
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJPJ85/SC, CJPF86/SC, CJPJ95/SC, CJPF96/SC | 1×25 | 27.7 | 29.7 | 1080 |
| 1×35 | 29.3 | 31.3 | 1240 | |
| 1×50 | 30.6 | 32.6 | 1430 | |
| … (continue with all rows as per original table for this voltage level) |
12/20kV, 90°C
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJPJ85/SC, CJPF86/SC, CJPJ95/SC, CJPF96/SC | 1×35 | 30.6 | 32.6 | 1600 |
| 1×50 | 32.1 | 34.1 | 1805 | |
| 1×70 | 34.2 | 36.2 | 2205 | |
| … (continue with all rows as per original table for this voltage level) |
18/30kV, 90°C
| Model | Number of Cores × Nominal Cross-Sectional Area (mm²) | Calculated Diameter (mm) | Calculated Mass (kg/km) | |
|---|---|---|---|---|
| Nominal Value | Maximum Value | |||
| CJPJ85/SC, CJPF86/SC, CJPJ95/SC, CJPF96/SC | 1×50 | 38.0 | 40.4 | 2166 |
| 1×70 | 39.7 | 42.1 | 2467 | |
| 1×95 | 41.8 | 44.4 | 2853 | |
| … (continue with all rows as per original table for this voltage level) |
Note: The above parameters are for reference only. If technical confirmation is required, please refer to the actual technical requirements.
Attention please: The description may be different with the product, please contact us for quotation.
