Search Light

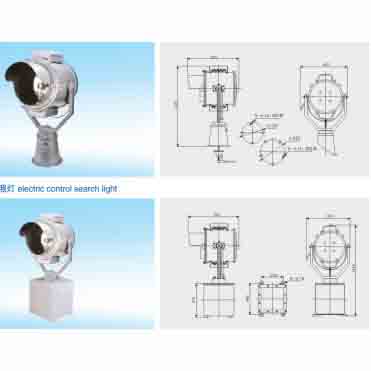

TZ1-A Electric Control Search Light
Specifications
| Type | Power | Voltage | Weight | Lamp Holder | Luminous Flux | Protection Class |
|---|---|---|---|---|---|---|
| TZ1 | 1000W | DC110V AC220V |
88Kg | 专用 For special use | 60000 | IP44 |
| TZ1-A | 1000W | DC110V AC220V |
88Kg | 专用 For special use | 60000 | IP44 |
Remark:
-
This series of searchlights are spherical mercury, xenon light source luminaires, equipped with special ballast and trigger, and in the searchlight there are spherical toughened glass reflector and focal distance adjustment device which can adjust the focal distance flexibly up and down or front and back. These lights possess such features as high luminous strength and far illumination distance, which are specially suitable in remote illumination and target search for night navigation of ship, life safeguard and alarm etc. TZ1 has cast aluminum and steel shell, ball plate mounted on base, also equipped with lifting gear which can control the light body by hand to rotate for 180 degrees horizontally and bend for 30 degrees vertically.
-
TZ1-A has stainless steel shell, a micro motor is mounted in base for controlling up and down or front and back, and TZ1-A is equipped with a special control box which can be used on control table to operate the light body to rotate for 180 degrees horizontally and bend for 30 degrees vertically.
TZ3 Search Light
TZ3-A Electric Control Search Light
Specifications
| Type | Voltage | Power | Weight | Lamp Holder | Luminous Flux | Protection Class |
|---|---|---|---|---|---|---|
| TZ3 | DC110V AC220V |
3000W | 150Kg | G19 灯头型号为 SBB20.3KW (Bulb model is SBB20.3KW) | 52800 | IP55 |
| TZ3-A | DC110V AC220V |
3000W | 227Kg | G19 灯头型号为 SBB20.3KW (Bulb model is SBB20.3KW) | 52800 | IP55 |
Remark: This series of searchlights adopt incandescent pre-focus bulb imported, and in the searchlight body there are spherical toughened glass reflector and focal distance adjustment device which can adjust the focal distance flexibly up and down or front and back. These lights possess such features as high luminous strength, far illumination distance and long working time, which are specially suitable in remote illumination and target search for night navigation of ship, life safeguard and alarm etc. TZ3 has cast aluminum and steel shell, ball plate mounted on base, also equipped with lifting gear which can control the light body by hand to rotate for 180 degrees horizontally and bend for 30 degrees vertically. TZ3-A has cast aluminum and stainless steel shell, a micro motor mounted in base for controlling up and down or left and right, also equipped with a special control box which can be operated on control table to operate the light body to rotate for 180 degrees horizontally and bend for 30 degrees vertically.
Note: The description may be different with the product, please contact us for quotation.
