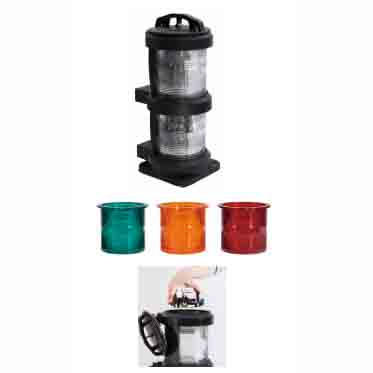

MARINE NAVIGATION SIGNAL LIGHT
Applicable Scope
Applied to the ships with the length of 50m or above as lamp signal liaison when night navigation.
| Name | Port Side Light | Starboard Light | Masthead Light | Stern Light | All – round Light |
|---|---|---|---|---|---|
| Type | CXH11 – 101P | CXH12 – 101P | CXH35 – 101P | CXH26 – 101P | CXH29 – 101P |
| Rated Voltage | 24V | 110V | 220V | 2*4W | 2*4W |
| Power | 2*4W | 2*4W | 2*4W | 2*4W | 2*4W |
| Lamp Holder | Bi – color Lamp Holder | ||||
| Color | Green | Red | White | White | White/Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° |
| Vertical Arc | ±5° | ||||
| Visible Distance | 3nm | 3nm | 6nm | 3nm | 3nm |
| Protection Class | IP56 | ||||
| Out – side Diameter | φ191 (Optional: φ110 – φ154) | ||||
| Installation Method | Base – mounted Type | ||||
| Ambient Temperature | -30℃ ~ +55℃ | ||||
| Lamp Body Material | Engineering Plastic | ||||
| Gland Material | Nylon (Optional: Brass) | ||||
| Lamp Shade Material | Engineering Plastic PC | ||||
| Lamp Shade Color | Red/Green/Yellow/White/Red/Transparent | ||||
| Weight | 4.05kg | 4.05kg | 4.05kg | 4.05kg | 4.05kg |
Attention please: The description may be different with the product, please contact us for quotation.
