Search Light for Ship
Product Images and Components

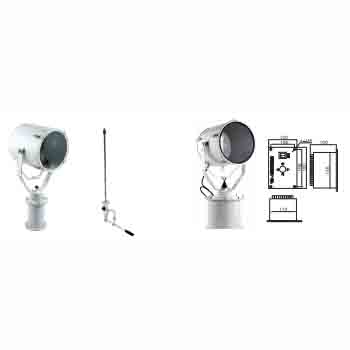

- CTG3: The main search – light device shown from multiple angles, along with a detailed cross – sectional view and a diagram of its base – type installation.
- CTG3 – A: A controller for the search light, shown with a diagram of its interface layout. Additionally, there is an image of a spray – type device (possibly related to cleaning or cooling, but not clearly specified in the context), and a diagram showing the connection between the controller and the light.
Main Technical Parameters
Scope of Application: Fitting for illumination of ship, port, dock, station and plaza etc.
Product Specifications Table
| Specification | CTG3 | CTG3 – A |
|---|---|---|
| Type | CTG3 | CTG3 – A (controller) |
| Rated Voltage | AC110V/220V | (Not specified in the table for the controller, but implied to be compatible with the light it controls) |
| Power | 1000W | (Not specified for the controller) |
| Illuminant | Incandescent focus bulb/Halogen lamp | (Not applicable for the controller) |
| Lamp Holder | E40/GY16 | (Not applicable for the controller) |
| Luminous Flux | 17000lm | (Not applicable for the controller) |
| Adjustable Angle | Rotate 180° horizontally, pitch 30° | (Not applicable for the controller, as it is for controlling the light’s angle) |
| Protection Class | IP56 | (Not specified for the controller) |
| Cable Outer Diameter | Φ10 – Φ14 | (Not specified for the controller) |
| Installation Method | Base type | (For the controller, likely wall – mounted or panel – mounted as per its design, but not specified in the table) |
| Ambient Temperature | -30°C ~ +55°C | (Not specified for the controller, but likely within a similar operating range) |
| Lamp Body Material | Steel | (Not applicable for the controller, likely plastic or metal casing) |
| Lamp Shade Material | Tempered glass | (Not applicable for the controller) |
| Weight | 26KG (for CTG3 light), 45KG (total weight implication not clear, likely just for the light unit as controller weight not given separately) | (Weight of controller not specified) |
| Remarks | Lifting ring (for the light unit); Controller (describing CTG3 – A as a controller) |
Attention please: The description may be different with the product, please contact us for quotation.
