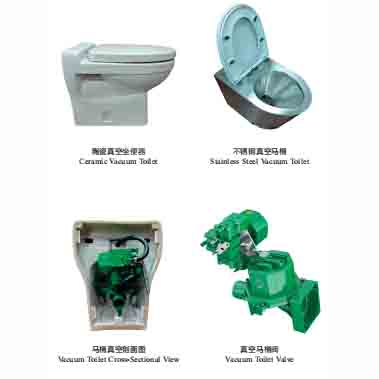

Marine Vacuum Toilet Valve
As the control core of shipboard vacuum sanitation systems, the vacuum toilet valve delivers exceptional performance through the following technical merits:
- Instantaneous Response with Powerful Evacuation
The valve generates intense negative pressure instantaneously, enabling high-velocity waste extraction with superior kinetic energy. A rapid actuation cycle ensures near-instant complete evacuation with zero residue, effectively preventing blockages while maintaining reliable operation under vessel heeling and pitching conditions. - Optimal Water Efficiency for Enhanced Performance
As the critical actuator in flush control, the vacuum valve enables ultra-low water consumption. Compared to conventional flush mechanisms, it requires minimal lubrication water (or operates waterlessly) while utilizing vacuum energy for complete waste removal, significantly conserving freshwater resources and reducing sewage tank loading. - Seamless Integration, Precise Control
The vacuum toilet valve integrates seamlessly with vessel vacuum collection systems and central controllers, enabling precision timing and dosage management.
Ceramic Vacuum Toilet Parameters
| No. | Item | Value |
|---|---|---|
| 1 | Outside Dimensions | 570 x 380 x 460mm (L x W x H) |
| 2 | Weight | Approx. 28kg/15kg |
| 3 | Discharge Valve Outlet | Ø 50 mm |
| 4 | Flushing Water Interface | 1/2″ Female 12-16mm male Thread |
| 5 | Material | Vacuum Ceramic |
| 6 | Flushing Time | 5 seconds (Adjustable) |
| 7 | Discharge Time | 2 seconds (Adjustable) |
| 8 | Water Pressure | 2-7 bar |
| 9 | Water Consumption | 1L/0.5bar |
| 10 | Operating Vacuum | 30-55% Vacuum |
| 11 | Air Consumption | Approx. 50 liters at 50% Vacuum |
| 12 | Working Temperature Range | 1°C – 60 °C |
Note: The description may be different with the product, please contact us for quotation.
