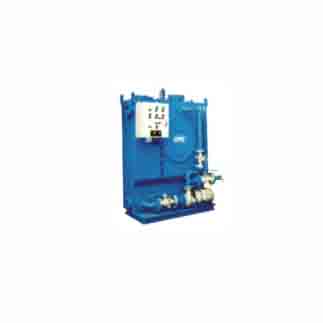

WCG/WCH Series Domestic Sewage Treatment, Crushing & Sterilization Storage Cabinet

Application and Feature

  1. WCH series of domestic sewage treatment, crushing and sterilization storage cabinet is used in various ships for storing raw sewage or solid waste after treated with sewage treatment unit. It can also used together with the sewage treatment unit as the lighter cabinet.
  2. This storage cabinet has the function of dosing sterilization, residue crushing, in-cabinet flushing and discharging the sewage residue after treatment out of the shipboard.
  3. This storage cabinet is simple in construction and convenient in operation. The water quality after treatment meets the requirement of IMO crusher and sewage collection cabin.

Principle Outline

The raw sewage or solid waste coming from the sewage treatment unit enters the excrement sterilization storage cabinet. When it accumulates to a certain level in the cabinet, the crushing pump will be started. The sewage or solid waste is recycled and crushed again and again. At the same time, add the dose to sterilize. After the sewage or solid waste is crushed to a certain extent, the sewage can be sent to the on-shore receiving facility through the deck international discharging joint, or directly discharged out of the shipboard in the non-controlling sea area.
This storage cabinet is equipped with low level stop and high level alarm facilities for the crushing pump. Please refer to the figures for the system principle and electrical control principle of the storage cabinet.

Main Technical Properties

  1. Discharged water quality: Number of coliform group > 1000/100ml, no visible suspended solid.
  2. Maximum configuration power:
    • WCG(WCH)-0.3 ~ 4: 1.5kW, 280V 50Hz
    • WCG(WCH)-5 ~ 20: 3kW, 380V 50Hz
  3. Discharge pressure:
    • WCG(WCH)-0.3 ~ 4: Discharge pressure with crushing pump: 0.1MPa
    • WCG(WCH)-5 ~ 20: Discharge pressure with crushing pump: 0.11MPa
    • Discharge pressure with water injection and pumping unit (fire water): 0.4MPa

Appearance Install Dimension Chart & Table

表格
Model Overall size (mm) Baseplate mounting dimensions (mm) Dry weight (T) Wet weight (T)
L B H A a b c d e f g h n Φ
WCG(WCH)-0.3 600 500 1200 500 100 1 300 1 300 150 150 600 8 13 0.435 0.753
WCG(WCH)-0.5 800 600 1500 600 150 1 300 1 400 200 200 800 8 13 0.586 1.086
WCG(WCH)-1 1200 600 1500 900 150 2 300 2 400 200 200 1200 12 13 0.676 1.676
WCG(WCH)-1.5 1300 1000 1600 1000 2 300 2 400 200 250 1300 12 13 0.732 2.232
WCG(WCH)-2 1400 1200 1500 1200 200 2 400 2 500 200 200 1400 12 13 1.043 3.043
WCG(WCH)-3 1600 1500 1500 1500 150 3 400 3 400 200 200 1600 16 13 1.241 4.241
WCG(WCH)-5 2000 1500 2000 1500 150 3 400 4 400 200 300 2000 18 16 1.457 5.451
WCG(WCH)-6 3000 1000 2500 1500 200 3 400 6 400 300 300 3000 20 15 1.767 6.767
WCG(WCH)-8 3000 1300 2500 1300 250 2 400 6 400 300 300 3000 20 15 2.124 7.936
WCG(WCH)-10 3500 1400 2500 1400 300 2 400 7 400 350 350 3500 22 15 2.355 10.124
WCG(WCH)-12 3500 1500 2500 1500 150 3 400 7 400 350 350 3500 22 15 2.274 12.355
WCG(WCH)-15 4300 1700 2500 1700 250 3 400 9 400 350 350 4300 24 15 2.627 14.627
WCG(WCH)-20 4800 2000 2500 2000 300 4 400 10 400 350 400 4800 32 15 3.286 18.286
5.286 25.286

Outer Interface Measurement & Specifications Chart & Table

表格
Model External interface dimensions (mm) Interface flange specifications (DN)
a b c d e f g h i j Flushing water inlet Vent Sewage inlet Sludge discharge Sterilization liquid inlet Discharge outlet
WCG(WCH)-0.3 400 100 200 200 250 500 500 200 200 150 32 50 100 40 32 50
WCG(WCH)-0.5 600 100 200 200 300 500 100 300 200 150 32 50 100 40 32 50
WCG(WCH)-1 900 100 200 300 450 500 100 450 200 150 32 50 100 40 32 50
WCG(WCH)-1.5 1000 100 400 300 500 500 1000 400 400 150 32 65 125 40 40 65
WCG(WCH)-2 1200 100 400 300 600 500 700 400 400 150 32 65 125 40 40 65
WCG(WCH)-3 1200 100 400 300 750 500 550 700 400 150 32 65 125 40 40 65
WCG(WCH)-5 1600 100 400 400 750 500 550 750 500 200 40 80 150 40 50 80
WCG(WCH)-6 2600 150 400 400 750 550 550 750 500 200 40 80 150 40 50 80
WCG(WCH)-8 2500 150 500 400 650 550 150 650 500 200 40 100 150 40 50 100
WCG(WCH)-10 3000 150 500 400 750 550 150 750 600 200 40 100 150 40 80 100
WCG(WCH)-12 3000 150 500 400 750 550 150 750 600 200 40 125 150 40 80 125
WCG(WCH)-15 3800 150 500 400 850 550 150 850 600 200 40 125 150 40 80 125
WCG(WCH)-20 4000 150 800 500 850 550 150 850 600 200 40 125 150 40 80 125

Note: The description may be different with the product, please contact us for quotation.
