Kidney Bollard
Features
- General – purpose applications up to 200 tons.
- Avoids steep rope angles where possible.
- Suitable for warping operations.
Visual Representations

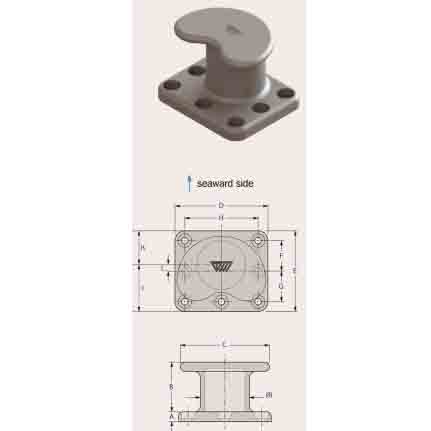

- 3D View: A three – dimensional image of the kidney bollard is presented on the left side, showing its unique kidney – like shape and the seaward side indication.
- Technical Drawings: Two technical drawings are included. One is a front – view drawing with a sectional view (showing the internal structure and bolt length), and the other is a top – view drawing. The drawings are annotated with various dimensions and an indication of the recommended line angle (ranging from – 15° to + 60°).
Dimensional and Bollard Capacity Table
| Dimension (mm) | Bollard Capacity (tons) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 30 | 50 | 75 | 100 | 125 | 150 | 200 | ||
| A | 40 | 40 | 50 | 70 | 70 | 80 | 80 | 90 | |
| B | 260 | 280 | 320 | 330 | 350 | 375 | 405 | 435 | |
| C | 340 | 370 | 480 | 530 | 550 | 640 | 728 | 800 | |
| D | 320 | 360 | 540 | 560 | 590 | 680 | 760 | 1000 | |
| E | – | 320 | 540 | 460 | 490 | 580 | 660 | 850 | |
| F | – | – | – | 175 | 210 | 250 | 300 | – | |
| G | 220 | 260 | 400 | 320 | 350 | 420 | 500 | 600 | |
| H | 220 | 260 | 260 | 420 | 450 | 520 | 600 | 750 | |
| ØI | 160 | 200 | 260 | 280 | 300 | 325 | 400 | 450 | |
| J | 160 | 180 | 270 | 280 | 295 | 340 | 380 | 475 | |
| K | 160 | 180 | 270 | 180 | 195 | 240 | 280 | 375 | |
| L | – | – | – | 50 | 50 | 50 | 50 | 50 | |
| Bolts | M24 | M30 | M36 | M42 | M42 | M48 | M56 | M64 | |
| Bolt Length | 500 | 500 | 500 | 800 | 800 | 1000 | 1000 | 1375 | |
| P | 55 | 55 | 65 | 85 | 85 | 95 | 95 | 105 | |
| Quantity | 4 | 4 | 4 | 5 | 7 | 7 | 7 | 7 |
Note: P represents the bollard base recess mounting depth including grout, with units in millimeters (mm).
Attention please: The description might be incorrect, please contact us for confirmation.
