BOLLARD
This product is applicable to the mooring system of ships. It meets the requirements of ISO3913 – 1977 and JIS F200 – 1975, and complies with ISO3913 – 1977 and Japanese Industrial Standard JISF200 – 1975.
Types
- Model A – Common Bollard Bitt
- Model B – Insert Bollard Bitt
- Model C – Bollard Bitt
- Model D – Bollard Bitt
- Model E – Double – Cross Bollard Bitt
Technical Diagrams

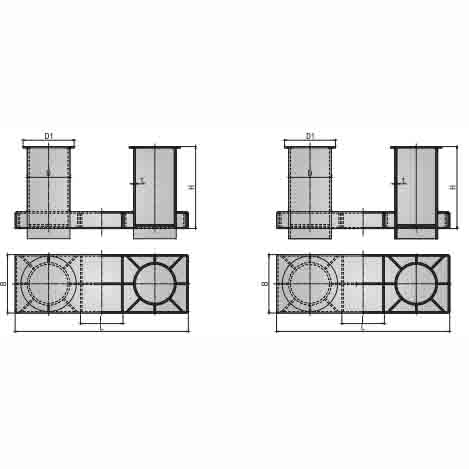

Each type has a corresponding technical diagram showing its front – view, top – view, and side – view with detailed dimension labels such as D1, D, L, A, B, H, etc.
Specification Tables
Table for Model A and Model B
| Nominal Diameter (mm) | Max. Diameter of Suitable Cable (mm) | Main Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| D | L | ||
| 100 | 29 | 7.4, 8.7, 8.7 – 63, 14 | 114 |
| 125 | 39 | 9.3, 8.7 – 75, 18 | 140 |
| 160 | 49 | 9.3, 11.0, 8.7 – 90, 20 | 168 |
| 200 | 78 | 13.0, 13.0, 11.0 – 110, 26 | 219 |
| 250 | 118 | 15.0, 17.5, 5.0 – 130, 30 | 273 |
| 315 | 196 | 20.5, 21.5, 19.5 – 170, 39 | 325 |
| 355 | 255 | 24.0, 24.0, 21.5 – 200, 45 | 351 |
| 400 | 314 | 26.0, 28.0, 24.0 – 235, 53 | 402 |
| 450 | 382 | 30.0, 30.0, 28.0 – 250, 56 | 450 |
| 500 | 451 | 32.0, 32.5, 30.0 – 280, 64 | 508 |
| 560 | 549 | 33.5, 36.5, 32.5 – 315, 70 | 560 |
| 630 | 686 | 37.5, 39.0, 36.5 – 345, 77 | 610 |
| 710 | 804 | 41.0, 43.0, 39.0 – 375, 84 | 712 |
| 800 | 981 | 44.5, 47.5, 43.0 – 430, – | 813 |
Table for Model C
| Nominal Diameter (mm) | Max. Diameter of Tight – wire (mm) | Max. Diameter of Rope girth (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| D | L | |||
| 50 | 8.7 | 75 | 50 | 310 |
| 75 | 11.5 | 90 | 75 | 430 |
| 100 | 13.5 | 100 | 100 | 540 |
| 125 | 15.5 | 125 | 125 | 676 |
| 150 | 17.5 | 150 | 150 | 800 |
Table for Model D
| Nominal Diameter (mm) | Max. Diameter of Tight – wire (mm) | Max. Diameter of Rope girth (mm) | Dimensions (mm) | Screw Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|
| D | L | A | |||
| 50 | 8.7 | 75 | 50 | 75 | 185 |
| 75 | 11.5 | 90 | 75 | 190 | 135 |
| 100 | 13.5 | 100 | 100 | 235 | 160 |
Table for Model E
| Nominal Diameter (mm) | Max. Diameter of Tight – wire (mm) | Max. Diameter of Rope girth (mm) | Dimensions (mm) | Screw Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|
| L | A | B | |||
| 50 | 8.7, 8.7 | 75, 75 | 310 | 180 | 130 |
| 75 | 11.5, 11.5 | 90, 90 | 550 | 275 | 200 |
| 100 | 13.5, 13.5 | 100, 100 | 660 | 425 | 240 |
| 125 | 15.5, 15.5 | 125, 125 | 770 | 500 | 270 |
| 150 | 17.5, 17.5 | 150, 150 | 850 | 530 | 320 |
| 200 | 22.5, 22.5 | 203, 203 | 960 | 600 | 360 |
| 250 | 26.0, 26.0 | 225, 245 | 1200 | 750 | 450 |
| 300 | 30.5, 30.5 | 250, 299 | 1440 | 900 | 540 |
Notes
- The specification of the embedded bollard (Model B) with a nominal diameter of 160 – 500mm should be reduced by 60mm when there is no wooden deck.
- If the orderer requires, a baffle can be installed.
Marking Examples
- Common (Model A) bollard with a nominal diameter of 200mm: Bollard A200 GB/T554 – 1996
- Insert (Model B) bollard with a nominal diameter of 200mm: Bollard B200 GB/T554 – 1996
- Double – cross (Model E) bollard with a nominal diameter of 200mm: Bollard E250 GB/T554 – 1996
Attention please: The description may be different with the goods, please check with us when order.
