BOLLARD FOR SHIP

GB/T554—96 265.YHS—014

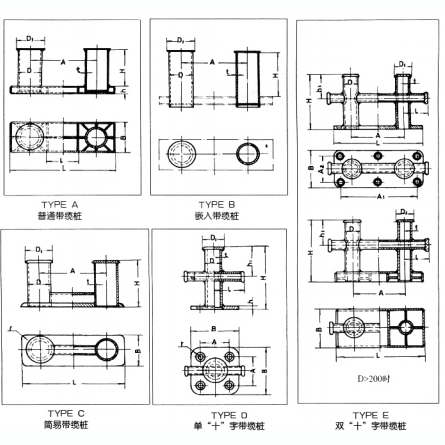

TYPE A – ORDINARY BOLLARD

SPECIFICATION TABLE

表格

NOMINAL DIAMETER MAXIMUM WORKING LOAD OF MOORING ROPE (KN) MAXIMUM DIAMETER OF APPLICABLE ROPE (mm) D D1 H H1 t t1 t2 h h1 A B L Lmin L2min I R WEIGHT kg
STEEL ROPE (6×24, 6×30, 6×37) HEMP ROPE SYNTHETIC FIBER ROPE
100 20 9.4 60 16 100 145 190 150 10 12 12 40 10 250 165 100 10 80 40
125 32 11.5 75 20 125 180 230 180 12 14 14 50 12 315 205 125 12 100 50
160 50 13.0 90 24 160 220 280 220 14 16 16 60 14 400 260 160 14 125 63
200 78 17.0 110 30 200 280 350 280 16 18 18 70 16 500 320 200 16 160 80
250 118 21.5 140 36 250 350 430 350 18 20 20 80 18 630 400 250 18 200 100
315 196 26.0 175 45 315 440 530 440 20 22 22 90 20 800 500 315 20 250 125
355 255 30.0 200 50 355 500 600 500 22 24 24 100 22 900 560 355 22 280 140
400 314 32.0 225 56 400 560 670 560 24 26 26 110 24 1000 630 400 24 320 160
450 382 36.0 250 63 450 630 750 630 26 28 28 120 26 1120 710 450 26 360 180
500 441 39.5 275 70 500 710 830 710 28 30 30 130 28 1250 800 500 28 400 200
600 588 44.5 325 80 600 850 980 850 30 32 32 140 30 1500 950 600 30 480 240
700 784 49.0 375 90 700 1000 1150 1000 32 34 34 150 32 1750 1100 700 32 560 280
800 980 56.0 425 100 800 1150 1300 1150 34 36 36 160 34 2000 1250 800 34 640 320
1000 1470 63.0 500 110 1000 1300 1500 1300 36 38 38 170 36 2500 1500 1000 36 800 400

NOTE: ①Steel rope shall comply with GB 1102-74, tensile strength 1520 N/mm²; ②Weight is calculated when the height of the base is equal to hmin

TYPE B – INSERTED BOLLARD

SPECIFICATION TABLE

表格

NOMINAL DIAMETER MAXIMUM WORKING LOAD OF MOORING ROPE (KN) MAXIMUM DIAMETER OF APPLICABLE ROPE (mm) D D1 A tmin t1min t2 h H WOODEN DECK
STEEL ROPE (6×24, 6×30, 6×37) HEMP ROPE SYNTHETIC FIBER ROPE WOODEN DECK STEEL DECK
160 50 13.0 90 24 160 220 210 10 6 6 8 250 310
200 78 17.0 110 30 200 280 270 10 6 6 8 300 360
250 118 21.5 140 36 250 350 330 10 6 6 8 360 440
315 196 26.0 175 45 315 440 420 12 8 8 10 450 540
355 255 30.0 200 50 355 500 480 12 8 8 10 500 590
400 314 32.0 225 56 400 560 540 14 10 10 12 600 660
450 382 36.0 250 63 450 630 610 14 10 10 12 660 740
500 441 39.5 275 70 500 710 680 16 12 12 14 750 810

NOTE: Steel rope shall comply with GB 1102-74, tensile strength 1520 N/mm²

TYPE C – SIMPLE BOLLARD

SPECIFICATION TABLE

表格

NOMINAL DIAMETER MAXIMUM DIAMETER OF APPLICABLE ROPE (mm) D D1 L A B H h h1 t b r WEIGHT kg
STEEL ROPE HEMP ROPE SYNTHETIC FIBER ROPE
50 8.7 75 16 50 65 310 180 100 115 9 26 6 32 20 4.5
75 11.5 90 20 75 95 430 275 125 170 12 43 7 50 20 10.8
100 13.5 100 24 100 120 540 350 160 220 14 51 7 65 25 18.6
125 15.5 125 28 125 145 676 430 200 275 15 60 9 80 28 34.3
150 17.5 150 30 150 170 800 500 230 330 16 70 9 100 35 49.0

TYPE D – SINGLE “+” BOLLARD

SPECIFICATION TABLE

表格

NOMINAL DIAMETER MAXIMUM DIAMETER OF APPLICABLE ROPE (mm) D D1 B H h h1 t d d1 r A BOLT WEIGHT kg
STEEL ROPE HEMP ROPE SYNTHETIC FIBER ROPE THREAD QUANTITY (pcs)
50 8.7 75 16 50 65 135 190 85 6 25 35 25 85 M16 4 2.8
75 11.5 90 20 75 95 185 290 120 8 35 52 35 115 M22 4 8.0
100 13.5 100 24 100 120 235 350 160 7 50 65 40 155 M27 4 15

TYPE E – DOUBLE “+” BOLLARD

SPECIFICATION TABLE

表格

NOMINAL DIAMETER MAXIMUM DIAMETER OF APPLICABLE ROPE (mm) D D1 L B H h h1 h2 t t1 d d1 r A A1 A2 BOLT WEIGHT kg
STEEL ROPE HEMP ROPE SYNTHETIC FIBER ROPE THREAD QUANTITY (pcs)
50 8.7 75 16 50 65 310 130 190 85 – 6 4 32 40 20 180 270 100 M12 6 7
75 11.5 90 20 75 95 450 170 290 130 – 7 5 48 65 25 275 400 125 M16 6 16
100 13.5 100 24 100 120 550 200 350 160 – 7 5 65 75 30 350 500 144 M18 6 27
125 15.5 125 28 125 145 680 270 425 195 – 9 7 80 95 35 425 600 170 M22 6 49
150 17.5 150 30 150 170 770 320 510 240 – 9 7 90 110 38 500 700 200 M22 6 71
175 19.5 175 36 175 200 900 380 580 280 – 10 8 110 135 45 580 800 244 M24 6 103
200 22.5 200 40 200 225 1000 425 685 320 – 12 9 130 160 50 600 – – – – 181
250 28.0 225 48 250 280 1200 550 855 400 – 14 10 150 180 60 750 – – – – 310
300 30.5 250 56 300 330 1400 680 1020 480 – 16 14 194 215 70 900 – – – – 576

NOTE: For D>200~300mm, H, h, h2 and weight are only applicable to steel decks. When installed on steel decks with wooden blocks, H, h, h2 shall each be increased by 150mm, and the weight shall be increased accordingly.

MARKING EXAMPLE

  • Ordinary bollard with nominal diameter 200mm: BOLLARD A 200 GB/T554-96
  • Inserted bollard with nominal diameter 200mm: BOLLARD B 200 GB/T554-96
  • Double “+” bollard with nominal diameter 200mm: BOLLARD E 200 GB/T554-96

AS INDICATION:

  • NOMINAL DIA 200mm FOR NORMAL MOORING BITTSS MOORING BITTSS A 200 GB/T554-96
  • NOMINAL DIA 200mm FOR EMBEDDED MOORING BITTSS MOORING BITTSS B 200 GB/T554-96
  • NOMINAL DIA 200mm FOR DOUBLE CROSS MOORING BITTSS MOORING BITTSS E 200 GB/T554-96

Note: The description may be different with the product, please contact us for quotation.
