Cleat Bollard
Features
- General – purpose applications up to 35 tons.
- Suitable for steep rope angles.
- Suitable for small wharves or jetties and marinas.
Visual Representations

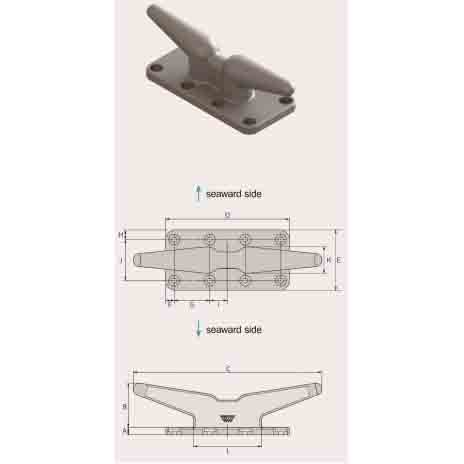

- 3D View: A three – dimensional image of the cleat bollard is presented on the left side, showing its overall shape with two pointed ends and multiple bolt – holes on the base. The seaward side is indicated.
- Technical Drawings: Two technical drawings are included. One is a side – view drawing showing the cross – section and the recommended line angle (ranging from – 15° to + 60°), with the bolt length marked. The other is a top – view drawing and a front – view drawing, both annotated with various dimensions.
Dimensional and Bollard Capacity Table
| Dimension (mm) | Bollard Capacity (tons) | |||||
|---|---|---|---|---|---|---|
| 15 | 20 | 25 | 30 | 35 | ||
| A | 30 | 40 | 45 | 45 | 50 | |
| B | 165 | 180 | 210 | 250 | 270 | |
| C | 510 | 665 | 810 | 960 | 1120 | |
| D | 410 | 510 | 610 | 660 | 840 | |
| E | 220 | 280 | 310 | 310 | 400 | |
| F | 40 | 50 | 50 | 45 | 60 | |
| G | 165 | 205 | 255 | 190 | 240 | |
| H | 40 | 50 | 50 | 45 | 60 | |
| J | 140 | 180 | 210 | 220 | 280 | |
| K | 90 | 110 | 130 | 150 | 170 | |
| L | 235 | 280 | 325 | 370 | 430 | |
| Bolt | M20 | M24 | M24 | M24 | M30 | |
| Bolt Length | 350 | 460 | 460 | 460 | 460 | |
| P | 45 | 55 | 60 | 60 | 65 | |
| Quantity | 6 | 6 | 6 | 8 | 8 |
Note: P represents the bollard base recess mounting depth including grout, and “1/2 dimension G” is also noted in the table description. All dimensions are in millimeters (mm).
Attention please: The description may be different with the goods, please check with us when order.
