Mooring Post
Dimensional Specifications

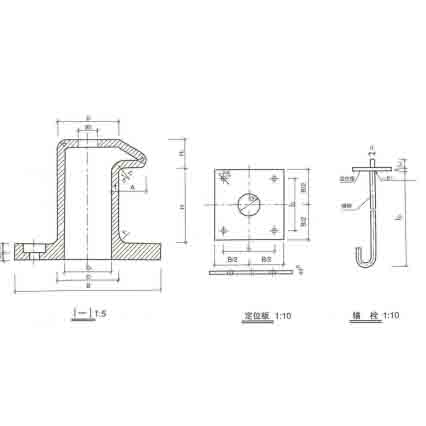

The Mooring Post drawing provides detailed dimensions of a component under different load conditions (50kN and 150kN). Key dimensions include overall height (H), width (B), and various other linear measurements marked on the drawing. Specific dimensions are listed in the table below under “各部位尺寸” (Dimensional Specifications for Each Part).
Dimensional Specifications for Each Part
| Load (kN) | D (mm) | D1 (mm) | H (mm) | H1 (mm) | H0 (mm) | B (mm) | B1 (mm) | A (mm) | n1 | n-□ | d (mm) | d1 (mm) | d2 (mm) | L (mm) | L1 (mm) | t1 (mm) | t2 (mm) | B2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50kN | 160 | 190 | 200 | 20 | 90 | 113 | 30 | 30 | 25 | 4-□13 | 20 | 30 | 21 | 31 | 52 | 75 | 50 | 60 |
| 150kN | 160 | 190 | 250 | 30 | 113 | 113 | 38 | 38 | 35 | 4-□17 | 20 | 30 | 21 | 31 | 52 | 75 | 70 | 80 |
Drawing Notes
- All dimensions in the drawing are in millimeters (mm).
- The dimensional tolerances for each part are in accordance with IT – I 150kN F grade.
- The top of the series anchor column should be poured with 50kN and 150kN characters.
- After the bolt holes are reamed, asphalt should be applied for rust prevention.
- After the series anchor is installed, the shell should be filled with cement mortar.
- The surface roughness of the bolt holes should be consistent, with the remainder as per requirements.
- Bolts should adopt T42.
- The outer轮廓 (contour, likely a translation issue, probably meaning outer surface or outer part) dimensions not marked should have a smooth transition without sharp corners.
- The surface of the series anchor shell should be painted with red丹 (likely a translation issue, probably red lead) and anti – rust paint twice, and the top surface can be coated with red lead oil.
- The dimension L in the table is L = L1+[0 +6].
2. Bill of Materials
| Serial Number | Component Name | Material | Specification | Quantity | Individual Part Weight (kg) (50kN/150kN) | Total Weight (kg) (50kN/150kN) |
|---|---|---|---|---|---|---|
| 1 | Shell | Cast Iron | HT20 – 40 | 1 | 121/234 | 121/234 |
| 2 | Anchor | Q235 | M20 M30 | 4 | 1.925/6.450 | 7.7/25.8 |
| 3 | Nut | Q235 | CB41 – 76 | 4 | 0.062/0.234 | 0.3/0.9 |
| 4 | Washer | Q235 | CB85 – 76 | 4 | 0.016/0.051 | 0.064/0.204 |
| 5 | Location Plate | Q235 | As shown in the drawing | 1 | 10.800/15.500 | 10.8/15.5 |
