Marine Guide Roller (with Stand)
Guide Roller (with Stand)
GB/T10105-88 NS 2585
Guide Roller for Ship
| Roller Dia. mm | Applicable cable dia. | External size | Weight kg | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel wire strength 15.2Mpa 6×24 | 6×37 | Hemp Rope | Synthetic fibre rope | D1 | d0 | d7 | H | Cast iron (HT) | |
| 150 | 17 | 15 | 45 | 32 | 240 | 90 | 79 | 154 | 24.8 |
| 200 | 22.5 | 19.5 | 55 | 40 | 310 | 116 | 99 | 196 | 49.3 |
| 250 | 24 | 24 | 65 | 45 | 380 | 135 | 119 | 230 | 92.0 |
| 300 | 30 | 28 | 70 | 50 | 440 | 155 | 120 | 255 | 127.0 |
| 350 | 37.5 | 34.5 | 75 | 55 | 500 | 175 | 149 | 271 | 168.0 |
| 400 | 41 | 39 | 85 | 65 | 560 | 185 | 159 | 307 | 252.5 |
| 450 | 44.5 | 43 | – | 80 | 620 | 210 | 179 | 316 | 310.0 |
Guide Roller with Stand for ship

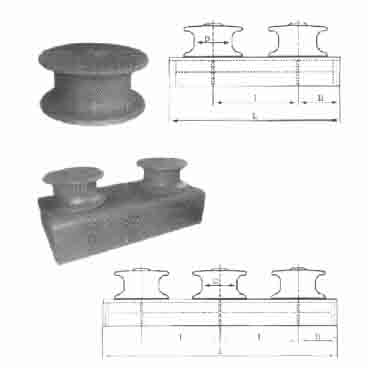

Open type two-roller fairlead
| Size | D | L | I | I1 |
|---|---|---|---|---|
| 150 | 150 | 740 | 420 | 160 |
| 200 | 200 | 930 | 530 | 200 |
| 250 | 250 | 1100 | 640 | 230 |
| 300 | 300 | 1270 | 750 | 260 |
| 350 | 350 | 1440 | 860 | 290 |
| 400 | 400 | 1610 | 970 | 320 |
| 450 | 450 | 1800 | 1080 | 360 |
Open type three-roller fairlead
| Size | D | L | I | I1 |
|---|---|---|---|---|
| 150 | 150 | 1160 | 420 | 160 |
| 200 | 200 | 1460 | 530 | 200 |
| 250 | 250 | 1740 | 640 | 230 |
| 300 | 300 | 2020 | 750 | 260 |
| 350 | 350 | 2300 | 860 | 290 |
| 400 | 400 | 2580 | 970 | 320 |
| 450 | 450 | 2880 | 1080 | 360 |
Note: The description may be different with the product, please contact us for quotation.
