Horn Bollard
Features
- General – purpose applications up to 250 tons.
- Suitable for steep rope angles.
- Two lines may share a single bollard (subject to bollard capacity).
Visual Representations

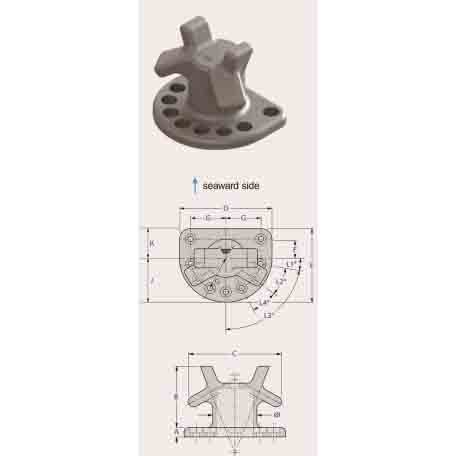

- 3D View: A three – dimensional image of the horn bollard is presented on the left side, showing its overall shape and the seaward side indication.
- Technical Drawing: A technical drawing on the right side includes multiple views (front view, top view, and a view showing the line angle). The drawing is annotated with various dimensions and an indication of the recommended line angle (ranging from – 15° to + 75°). The bolt length is also marked in the drawing.
Dimensional and Bollard Capacity Table
| Dimension (mm) | Bollard Capacity (tons) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | |
| A | 40 | 40 | 50 | 70 | 80 | 80 | 90 | 90 | 120 |
| B | 370 | 410 | 500 | 520 | 570 | 595 | 585 | 660 | 690 |
| C | 400 | 440 | 600 | 660 | 750 | 775 | 850 | 930 | 930 |
| D | 410 | 480 | 640 | 650 | 800 | 820 | 920 | 1000 | 1000 |
| E | 335 | 405 | 540 | 560 | 650 | 670 | 770 | 850 | 850 |
| F | 80 | 100 | 150 | 160 | 175 | 175 | 200 | 225 | 225 |
| G | 155 | 175 | 250 | 250 | 325 | 325 | 350 | 375 | 375 |
| ØI | 160 | 200 | 260 | 300 | 350 | 375 | 400 | 450 | 450 |
| J | 205 | 240 | 320 | 320 | 410 | 460 | 500 | 500 | – |
| K | 130 | 165 | 220 | 235 | 250 | 260 | 310 | 350 | 350 |
| L1′ | 30′ | 30′ | 30′ | 15′ | 10′ | 10′ | 10′ | – | – |
| L2′ | – | – | – | 45′ | 40′ | 40′ | 36′ | 36′ | – |
| L3′ | – | – | – | 60′ | 60′ | 80′ | 80′ | 80′ | – |
| L4′ | – | – | – | – | – | 36′ | 36′ | 36′ | – |
| Bolts | M24 | M30 | M36 | M42 | M42 | M48 | M48 | M56 | M64 |
| Bolt Length | 500 | 500 | 500 | 800 | 800 | 900 | 1000 | 1000 | 1375 |
| P | 55 | 55 | 65 | 85 | 95 | 95 | 105 | 105 | 135 |
| Quantity | 4 | 4 | 4 | 6 | 7 | 7 | 7 | 8 | 8 |
Note: P represents the bollard base recess mounting depth including grout, with units in millimeters (mm).
