Guide Roller (with Stand)

Guide Roller (with Stand)

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Guide Roller (with Stand)

Guide Roller (with Stand)
CB*58-83 CB/T2201498

Guide Roller
Roller Dia. mm Applicable cable dia. External size Weight kg
Steel wire strength 15.2MPa 6×24 6×30 6×37 Hemp Rope Synthetic fibre rope D1 H S Cast iron (HT) Cast steel (ZG)
100 11 11 11 40 28 160 128 3 9.4 9.9
150 17 17.5 15 45 32 240 211 3 32.1 33.8
200 22.5 21.5 19.5 55 40 310 251 3 64.6 68.0
250 24 26 24 65 45 380 298 4 108 114.0
300 30 32.5 28 70 50 440 321 4 159 168.0
350 37.5 39 34.5 75 55 500 346 4 235 248.0
400 41 39 39 85 65 560 371 5 336 355.0
450 44.5 47.5 43 – 80 620 394 5 413 462.0

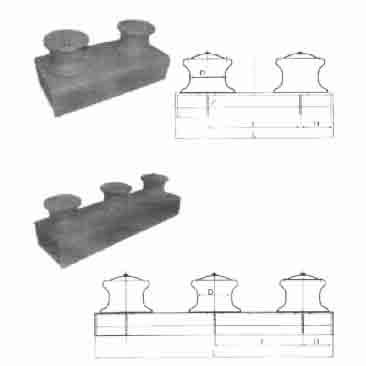

Guide Roller with Stand (Open type)
Open type two-roller fairlead
Size D L I I1
150 150 740 420 160
200 200 930 530 200
250 250 1100 640 230
300 300 1270 750 260
350 350 1440 860 290
400 400 1610 970 320
450 450 1800 1080 360
Open type three-roller fairlead
Size D L I I1
150 150 1160 420 160
200 200 1460 530 200
250 250 1740 640 230
300 300 2020 750 260
350 350 2300 860 290
400 400 2580 970 320
450 450 2880 1080 360

Note: The description may be different with the product, please contact us for quotation.
