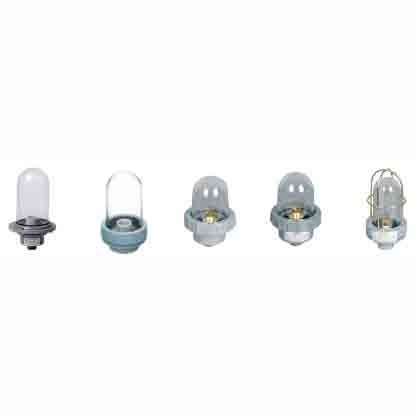

Head Light
Applied to the ships as lamp signal liaison when night navigation.
| CXHS-1 | CXHS-1A | CXHS-2 | CXHS-2A | CXHS-3 | |
|---|---|---|---|---|---|
| Type | |||||
| Model | CXHS-1 | CXHS-1A | CXHS-2 | CXHS-2A | CXHS-3 |
| The scope of application | Applied to the ships as lamp signal liaison when night navigation. | ||||
| Rated Voltage | 24V/110V/220V | 24V/110V/220V | 12V/24V | 12V/24V | 15W (no voltage specified in original, assumed same as related context of low – voltage for small lights, but needs real – world check) |
| Power | 60W | 60W | 30W | 30W | 15W |
| Color | Clear Transparent, Green, Red, Yellow, Blue, Purple | Clear Transparent, Green, Red, Blue | Clear Transparent, Green, Red, Blue | Clear Transparent, Green, Red, Blue | Clear Transparent, Green, Red |
| Level Arc | 360° | 360° | 360° | 360° | 360° |
| Vertical arc | ±5° | ±5° | ±5° | ±5° | ±5° |
| Visibility | 3n.m | 3n.m | 2n.m | 2n.m | (not specified in original table) |
| Protection Class | IP56 | IP56 | IP56 | IP56 | (not specified in original table) |
| Cable outside diameter | Φ12 | Φ12 | (not specified in original table) | (not specified in original table) | (not specified in original table) |
| Installation method | Screw thread | Screw thread | (not specified in original table) | (not specified in original table) | (not specified in original table) |
| Ambient temperature | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ |
| Lamp body material | Aluminum | Plastic | Aluminum | Plastic | (not specified in original table, assumed same as CXHS – 2 or needs check) |
| Lampshade material | Glass | Glass | Glass | Glass | (not specified in original table) |
| Weight | 0.9KG | 0.7KG | 0.5KG | 0.45KG | 0.3KG |
Attention please: The description may be different with the product, please contact us for quotation.
