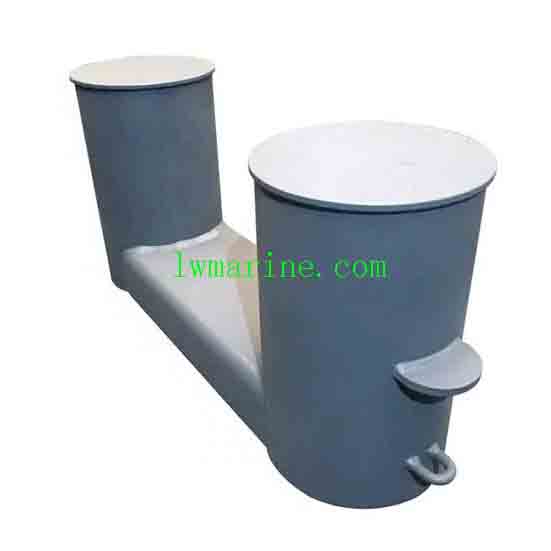

Double Bollard
Double Bollard

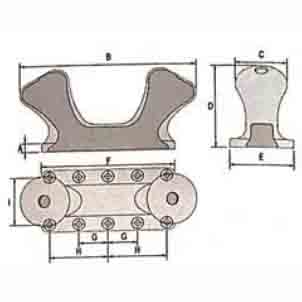

| Model no. | Size (mm) | Bolt size | Bolt leng | Qty | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | ||||
| 20T | 38 | 673 | 204 | 335 | 267 | 533 | 70 | 222 | 191 | M20 | 300 | 8 |
| 30T | 46 | 781 | 236 | 389 | 302 | 604 | 81 | 258 | 221 | M22 | 300 | 8 |
| 50T | 56 | 942 | 285 | 469 | 356 | 711 | 98 | 311 | 267 | M30 | 450 | 8 |
| 75T | 62 | 1144 | 346 | 570 | 432 | 864 | 189 | 378 | 324 | M36 | 450 | 10 |
| 100T | 3 | 1346 | 407 | 670 | 508 | 1016 | 222 | 444 | 381 | M42 | 600 | 10 |
| 125T | 80 | 1548 | 468 | 771 | 584 | 1168 | 256 | 512 | 438 | M42 | 600 | 10 |
| 150T | 91 | 1683 | 509 | 838 | 635 | 1270 | 278 | 556 | 476 | M48 | 750 | 10 |
| 200T | 98 | 1885 | 570 | 938 | 702 | 1422 | 311 | 622 | 533 | M56 | 915 | 10 |
Note: The description may be different with the product, please contact us for quotation.
