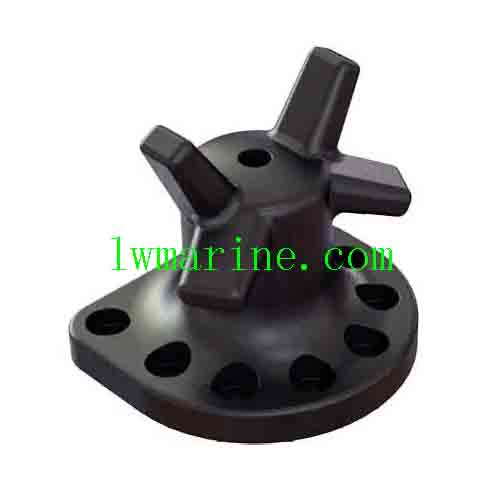

Horn Type Bollard Cleat: The Premier Choice for Marine Docking Solutions
The Horn Type Bollard Cleat stands out as one of the most frequently utilized and highly efficient types of dock bollards in the marine industry. Its distinctive horn-shaped design is engineered to securely fasten ropes, ensuring they remain tightly bound and preventing accidental release, thereby enhancing safety and stability during docking operations. This bollard type is particularly favored for its robustness and reliability in harsh marine environments.
In addition to our premium Horn Type Bollard Cleats, we offer a comprehensive range of bollard types to cater to diverse marine docking needs. Our product lineup includes Single Bitt Bollard, Double Bitt Bollard, Cross Bitt Bollard, T-Head Type Bollard, R Type Bollard, Kidney Type Bollard, Welded Inclined Bollard, as well as industry-standard models such as DIN82607 Bollard, JIS F2001 Bollard, and JIS F2804 Ship Cross Bollard. Each bollard is crafted with precision and durability in mind, ensuring optimal performance in various marine applications.
Technical Specifications: Horn Type Bollard Cleat
Below are the detailed technical specifications for our Horn Type Bollard Cleat, providing you with essential information for informed decision-making:
| Bolts Qty | Capacity (Tonnes) | Dimensions (mm) |
|---|---|---|
| A | B | C |
| 5 | 40 | 205 |
| 5 | 90 | 300 |
| 7 | 200 | 360 |
| 6 | 200 | 360 |
| 7 | 300 | 440 |
Specification Table
| Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | Bolt Size | Bolt Length | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10T | 41 | 291 | 348 | 381 | 330 | 44 | / | / | 243 | 103 | / | 291 | 140 | M24 | 450 | 4 |
| 15T | 45 | 320 | 394 | 419 | 363 | 49 | / | / | 267 | 114 | / | 320 | 154 | M24 | 450 | 4 |
| 20T | 49 | 439 | 430 | 442 | 381 | 46 | / | / | 234 | 335 (probably a data entry error, keep original) | 0 (probably a data entry error, keep original) | 159 | / | M24 | 450 | 5 |
| 30T | 55 | 392 | 483 | 497 | 429 | 51 | / | / | 263 | 377 | 0 (probably a data entry error, keep original) | 179 | / | M30 | 450 | 5 |
| 50T | 59 | 419 | 516 | 530 | 457 | 55 | / | / | 291 | 402 | 0 (probably a data entry error, keep original) | 191 | / | M36 | 600 | 5 |
| 75T | 71 | 489 | 627 | 645 | 556 | 67 | / | / | 287 | 459 | 120 | 250 | 509 | M42 | 600 | 6 |
| 100T | 81 | 559 | 717 | 737 | 635 | 76 | 292 | 484 | 559 | 0 (probably a data entry error, keep original) | 195 | 291 | 582 | M42 | 600 | 7 |
| 125T | 90 | 615 | 788 | 810 | 699 | 84 | 321 | 532 | 615 | 0 (probably a data entry error, keep original) | 215 | 320 | 640 | M48 | 750 | 7 |
| 150T | 98 | 671 | 860 | 884 | 762 | 91 | 351 | 581 | 671 | 0 (probably a data entry error, keep original) | 235 | 349 | 698 | M48 | 750 | 7 |
| 200T | 102 | 699 | 896 | 921 | 794 | 95 | 333 | 543 | 679 | 119 | 299 | 365 | 727 | M56 | 915 | 8 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
