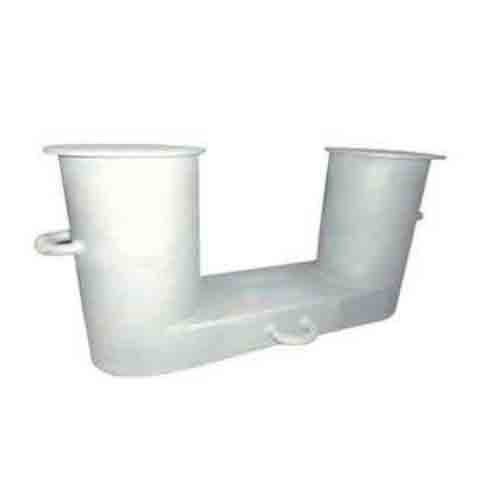

Marine Bollard Type A
Our Marine Double Bollard, specifically engineered for installation along riverbanks, seaports, and other maritime environments, serves as a robust anchor point for securing ropes during ship mooring operations. As a leading marine bollard supplier, we specialize in providing a comprehensive range of bollards tailored to meet diverse maritime needs. Our product lineup includes, but is not limited to, GB/T 554/96 bollards (encompassing simple, inserted, and cross variants), GB554-83 bollards, GB/T 556-65 welded inclined bollards (both SH and DH types), GB/T 10106-88 ship cross bitts, DIN82607-1995 bollards, CVI-Bollards, U.S.A type bollards, JIS F2001 bollards, as well as T-head, Staghorn, Kidney, J type dock, R type, Single bitt, and Double bitt bollards. Additionally, we offer bespoke bollard solutions crafted according to unique customer specifications, ensuring optimal performance in any maritime setting.
Key Features:
- Extended Service Life: Built to withstand the rigors of marine environments, our bollards promise a long working life, reducing the need for frequent replacements.
- Superior Quality at Competitive Pricing: We prioritize quality without compromising on affordability, offering marine bollards that deliver exceptional value for money.
- Customization Options: Recognizing the diverse needs of our clients, we provide custom-made bollards to match specific requirements, ensuring a perfect fit for every application.
Specification Table
| Model No. | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H1 (mm) | H2 (mm) | B (mm) | L (mm) | E (mm) | SWL (T) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 165.2 | 185 | – | 80 | 330 | 90 | 155 | 400 | – | 5T | 29 |
| 200 | 216.3 | 240 | – | 130 | 395 | 115 | 205 | 500 | – | 6.7T | 46 |
| 250A | 267.4 | 290 | – | 160 | 505 | 135 | 250 | 630 | – | 14T | 107 |
| 250B | 267.4 | 290 | – | 160 | 505 | 135 | 250 | 630 | – | 11T (likely an error, keep as is) | 91 |
| 300A | 318.5 | 340 | 150 | 185 | 600 | 150 | 290 | 800 | 300 | 31T | 281 |
| 300B | 318.5 | 340 | 150 | 185 | 600 | 150 | 290 | 800 | 300 | 16T (likely an error, keep as is) | 166 |
| 350A | 355.6 | 380 | 170 | 200 | 685 | 175 | 340 | 890 | 350 | 43T | 431 |
| 350B | 355.6 | 380 | 170 | 220 | 685 | 175 | 340 | 890 | 350 | 22T (likely an error, keep as is) | 241 |
| 400A | 406.4 | 430 | 190 | 230 | 730 | 185 | 380 | 1000 | 380 | 53T | 570 |
| 400B | 406.4 | 430 | 190 | 250 | 730 | 185 | 380 | 1000 | 380 | 27T (likely an error, keep as is) | 322 |
| 450A | 457.2 | 480 | 210 | 265 | 770 | 195 | 425 | 1100 | 410 | 62T | 712 |
| 450B | 457.2 | 480 | 210 | 285 | 770 | 195 | 425 | 1100 | 410 | 30T (likely an error, keep as is) | 379 |
| 500A | 508 | 530 | 235 | 295 | 830 | 230 | 480 | 1250 | 460 | 77T | 960 |
| 500B | 508 | 530 | 235 | 320 | 830 | 230 | 480 | 1250 | 460 | 33T (likely an error, keep as is) | 465 |
| 550A | 558.8 | 580 | 255 | 330 | 900 | 270 | 520 | 1380 | 540 | 83T | 1123 |
| 550B | 558.8 | 580 | 255 | 350 | 900 | 270 | 520 | 1380 | 540 | 55T (likely an error, keep as is) | 787 |
| 600 | 609.4 | 630 | 280 | 365 | 950 | 300 | 560 | 1550 | 600 | 97T | 1391 |
Attention please: The description may be different with the goods, please check with us when order.
