Marine Bollard
Product Features
- High quality casting material
- Strong and durable design
- Low maintenance
- Large mooring range angle

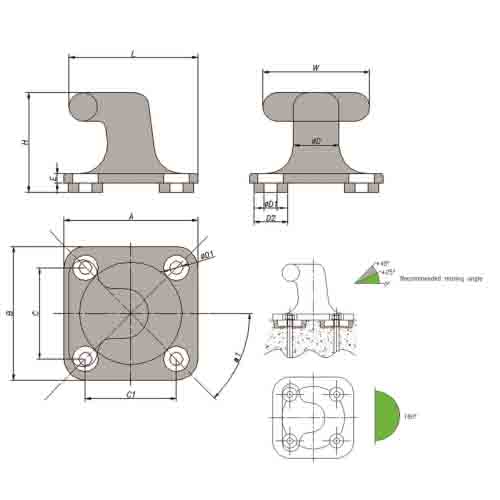

Table 1: Dimensions and Bollard Capacity
| Dimension (mm) | 5T Bollard Capacity | 30T Bollard Capacity | 100T Bollard Capacity | 150T Bollard Capacity | 175T Bollard Capacity | 200T Bollard Capacity |
|---|---|---|---|---|---|---|
| Weight (kg) | 95 | 180 | 593 | 785 | 1115 | 1375 |
| A | 470 | 600 | 940 | 1000 | 1150 | 1230 |
| B | 470 | 600 | 940 | 1000 | 1150 | 1230 |
| C | 270 | 400 | 640 | 700 | 800 | 850 |
| C1 | 270 | 400 | 640 | 700 | 800 | 850 |
| D | 170 | 230 | 320 | 380 | 410 | 440 |
| D1 | 82 | 66 | 91 | 112 | 112 | 112 |
| D2 | 140 | 170 | 240 | 275 | 260 | 290 |
| E | 35 | 45 | 65 | 70 | 80 | 90 |
| H | 360 | 500 | 700 | 860 | 920 | 975 |
| L | 415 | 577 | 905 | 952 | 1103 | 1145 |
| W | 390 | 560 | 750 | 940 | 970 | 1000 |
Table 2: Anchorage Details
| Metric | 5T Bollard Capacity | 30T Bollard Capacity | 100T Bollard Capacity | 150T Bollard Capacity | 175T Bollard Capacity | 200T Bollard Capacity |
|---|---|---|---|---|---|---|
| New concrete | ||||||
| Length (mm) | M.30 | M.56 | M.80 | M.90 | M.100 | M.100 |
| Length Embedded (mm) | 500 | 700 | 1000 | 1100 | 1200 | 1200 |
| Weight (kg) | 430 (embedded 430? Based on the original “430 590” etc., assumed first value is for new concrete embedded length related weight part) 590 (total? unclear, but kept as per original structure) | 845 | 930 | 1010 | 1010 | |
| Old concrete | ||||||
| Length (mm) | 500 | 790 | 1100 | 1130 | 1250 | 1250 |
| Length Embedded (mm) | 430 | 680 | 945 | 960 | 1060 | 1060 |
| Weight (kg) | 3.3 | 17 | 48 | 64 | 86 | 86 |
| Number of anchorages | 4 | 4 | 4 | 4 | 4 | 4 |
| α1 | 45° | 45° | 45° | 45° | 45° | 45° |
| α2 | – | – | – | – | – | – |
| α3 | – | – | – | – | – | – |
| α4 | – | – | – | – | – | – |
Attention please: The description might be incorrect, please contact us for confirmation.
