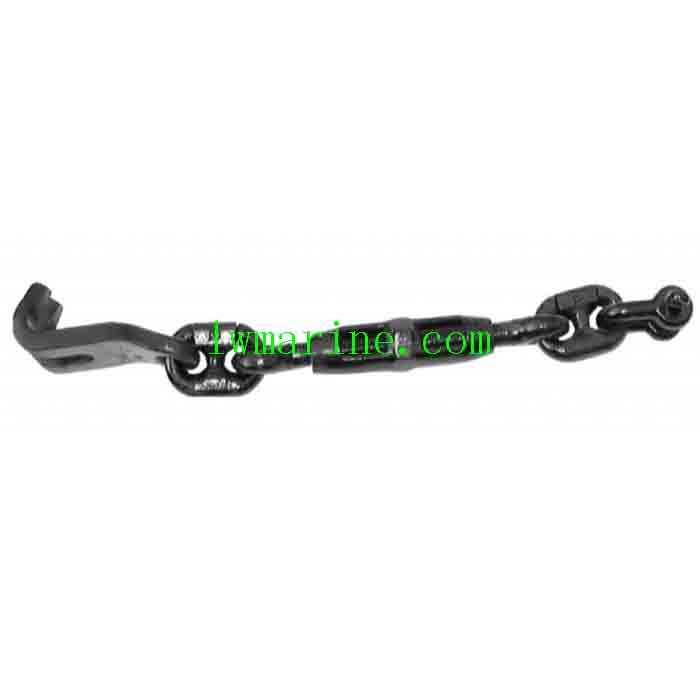

China Devil’s Claw Type Chain Stopper Assembly for Secure Anchor Chain Management
Introducing our premium China Devil’s Claw Type Chain Stopper Assembly, a robust and high-quality solution designed to securely manage anchor chains of various sizes. Available in a range from 3/4 inch to 4 inch, our Devil’s Claw chain stoppers are engineered for heavy-duty applications, ensuring reliable performance and safety in marine environments. For inquiries and detailed specifications, please contact our dedicated sales team.
Key Specifications of Devil’s Claw Type Chain Stopper Assembly:
- Chain Size Range: From 3/4 inch to 4 inch, accommodating a wide variety of anchor chain diameters.
- High Strength and Quality: Constructed with durable materials to withstand extreme conditions and heavy loads.
- Customizable Options: We offer customization services to meet specific requirements and preferences.
Detailed Chain Size and Load Capacity Table:
| Chain Size (Inches) | B Min. (mm) | B Max. (mm) | A (mm) | D (mm) | C (mm) | E (mm) | Det. Link Size (Inches) | Proof Load (Lbs.) | Break Load (Lbs.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 – 7/8 | 19 – 22 | 34-1/2 | 42 | 17-1/4 | 11 | 6-3/4 | 1 | 64400 | 91800 | 33 |
| 15/16 – 1.1/4 | 24 – 32 | 46-11/16 | 55-11/16 | 19-5/8 | 13 | 9 | 1-1/4 | 129000 | 184000 | 73 |
| 1.5/16 – 1.5/8 | 33 – 41 | 53 | 63-1/2 | 23-3/4 | 16 | 12-1/4 | 1-1/2 | 183500 | 262000 | 145 |
| … (continue with other sizes) | … | … | … | … | … | … | … | … | … | … |
| 3.9/16 – 4 | 90 – 102 | 106-1/8 | 124-1/8 | 44-3/8 | 27-1/2 | 28 | 2-7/8 | 679000 | 970000 | 1216 |
Devil’s Claws Chain Stopper Structure Components:
- Fork Hook: Securely attaches to the anchor chain, providing a strong grip.
- Shackle: Connects the Fork Hook to the End Link, allowing for flexibility and movement.
- End Link: Links the Shackle to the Common Link, ensuring a continuous and secure connection.
- Common Link: Forms the main chain link, distributing the load evenly.
- Open Type Turnbuckle and Shackle: Adjusts the tension of the chain stopper, ensuring optimal performance.
- Eye Plate: Provides a mounting point for the chain stopper, facilitating easy installation.
Devil’s Claws Size and Load Capacity Table (in mm and KN):
| Anchor Chain Diameter (mm) | SWL (KN) | Fork Hook | Chain Link | Turnbuckle | Eye Plate | Weight (kgs) |
|---|---|---|---|---|---|---|
| 14-16 | 5.5 | 1 | 12.5 | KOUD12 | F1.0 | 2.00 |
| 17.5-20.5 | 9.3 | 2 | 12.5 | KOUD14 | F1.6 | 3.10 |
| 22-24 | 12.5 | 3 | 12.5 | KOUD16 | F2.0 | 4.80 |
| … (continue with other sizes) | … | … | … | … | … | … |
| 66-68 | 100 | 14 | 32 | KOUH42 | F12.0 | 78.00 |
Frequently Asked Questions (FAQs):
- What is the primary function of the Devil’s Claw Type Chain Stopper Assembly?
- The primary function is to securely manage and hold anchor chains in place, preventing unwanted movement and ensuring safe mooring.
- What sizes of anchor chains can the Devil’s Claw chain stopper accommodate?
- Our Devil’s Claw chain stopper assembly is available in a range from 3/4 inch to 4 inch, accommodating various anchor chain diameters.
- Can the Devil’s Claw chain stopper be customized for specific requirements?
- Yes, we offer customization services to meet specific requirements and preferences, ensuring optimal performance and compatibility.
- What materials are used in the construction of the Devil’s Claw chain stopper?
- The Devil’s Claw chain stopper is constructed with high-quality, durable materials designed to withstand extreme conditions and heavy loads.
- How does the Open Type Turnbuckle and Shackle contribute to the performance of the chain stopper?
- The Open Type Turnbuckle and Shackle allow for easy adjustment of the chain stopper’s tension, ensuring optimal performance and secure anchoring.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
