Casting bar type chain stopper
Chain Stopper
CB 286-84

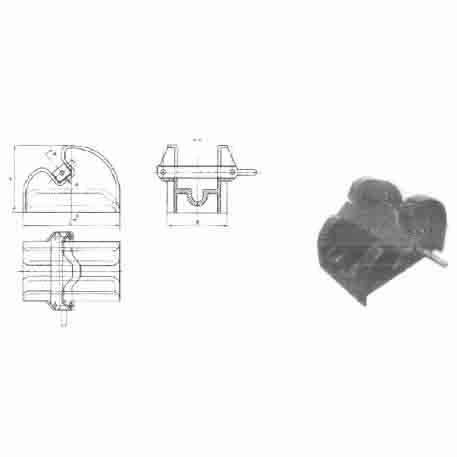

Casting bar type chain stopper
| Nominal dia. | 19 | 22 | 25 | 28 | 32 | 36 |
|---|---|---|---|---|---|---|
| Suitable chain dia. | 17~18 | 20~22 | 23~25 | 26~28 | 29~32 | 34~36 |
| A | 190 | 216 | 241 | 270 | 305 | 342 |
| B | 270 | 310 | 346 | 385 | 435 | 490 |
| C | 200 | 226 | 256 | 290 | 320 | 354 |
| D | 134 | 153 | 175 | 193 | 220 | 246 |
| Weight (kg) | 17 | 24 | 33 | 44 | 68 | 92 |
| Anchor chain dia. | 12.5~14 | 16~17.5 | 19~20.5 | 22~24 | 26~28 | 30~32 | 34~36 | 38~40 | 42~44 | 46~48 | 50~52 | 54~56 | 58~60 | 62~64 | 66~68 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 142 | 170 | 193 | 219 | 241 | 274 | 304 | 336 | 366 | 397 | 428 | 457 | 488 | 517 | 547 |
| H | 162 | 190 | 216 | 241 | 270 | 305 | 342 | 378 | 412 | 450 | 491 | 528 | 564 | 600 | 635 |
| L | 235 | 270 | 310 | 345 | 385 | 435 | 490 | 540 | 590 | 640 | 695 | 745 | 795 | 850 | 900 |
| Weight (kg) | 22 | 29 | 36 | 45.5 | 58 | 74 | 92 | 115 | 145 | 183 | 225 | 271 | 352.5 | 424 | 509 |
Note: The description may be different with the product, please contact us for quotation.
