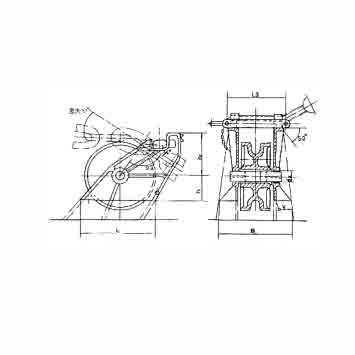

SHIP ROLLER LEVER CHAIN STOPPER
GB4443—84
265_YHS-001
MARKING EXAMPLE
Anchor chain diameter: 70~73mm
Roller lever chain stopper:
CAST LEVER CHAIN STOPPER 22~24 CB*286-R4
AS INDICATION:
ANCHOR CHAIN DIA 70~73mm FOR ROLLER-TYPE CABLE STOPPER
ROLLER-TYPE CABLE STOPPER 22~24 CB*286-R4
PRODUCT SPECIFICATION TABLE
| ANCHOR CHAIN DIAMETER | 70~73 | 76~78 | 81~84 | 87~90 | 92~95 | 97~102 | 105~107 | 111~114 | 117~122 | 124~132 |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 765 | 825 | 895 | 985 | 1025 | 1105 | 1181 | 1245 | 1335 | 1445 |
| L3 | 700 | 730 | 780 | 810 | 880 | 840 | 890 | 1040 | 1100 | 1170 |
| B | 850 | 900 | 970 | 1030 | 1080 | 1150 | 1210 | 1270 | 1340 | 1440 |
| d2 | 109 | 116 | 124 | 132 | 139 | 148 | 154 | 163 | 173 | 185 |
| h1 | 255 | 270 | 290 | 320 | 335 | 355 | 380 | 400 | 430 | 455 |
| h2 | 460 | 490 | 530 | 570 | 610 | 650 | 690 | 740 | 790 | 860 |
| WEIGHT kg | 1053 | 1246 | 1559 | 1901 | 2251 | 2556 | 3113 | 3696 | 4415 | 5443 |
Note: The description may be different with the product, please contact us for quotation.
