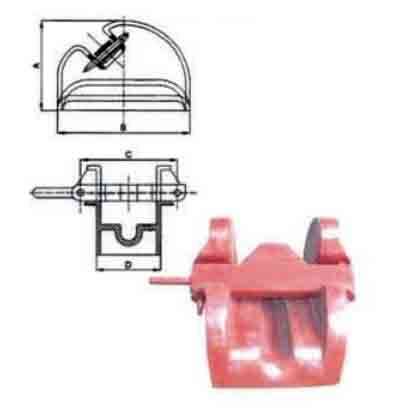

Cast Steel Bar type Chain Cable Stopper

Engineered for maximum reliability in marine mooring operations, our JIS F2023-1976 Cast Steel Bar Type Chain Stopper provides secure anchor chain locking with exceptional durability. Featuring a straightforward, robust design, this chain stopper delivers outstanding wear and corrosion resistance, ensuring extended service life even in the most demanding marine environments. Manufactured through precision casting and machining processes, each unit maintains consistent quality and performance standards.

Quality Assurance & Customization

International Certification: Compliant with CCS, BV, ABS, DNV and other major marine classification standards
Advanced Surface Treatments: Options include polished finish, hot-dip galvanized coating, or bitumen paint for superior corrosion protection

Table of Specifications

Model No.	Monitional Dia. of Anchor Chain (inch)	Size (mm) – A	Size (mm) – B	Size (mm) – C	Size (mm) – D	Weight (KG)
19	17~19	190	270	200	134	17
22	20~22	216	310	226	153	24
25	23~25	241	345	256	175	33
28	26~28	270	385	280	193	44
32	29~32	305	435	320	220	68
36	34~36	342	490	154 (likely an error, keep as is)	246	92
40	38~40	378	540	390	336	111
44	42~44	412	590	424	366	139
48	46~48	450	640	460	397	176
52	50~52	491	695	494	428	216
56	54~56	528	745	530	457	261
60	58~60	564	795	564	488	319
64	62~64	600	850	600	517	380
68	66~68	635	900	636	547	452
73	70~73	675	960	678	582	561
78	76~78	715	1020	720	617	682
