Cast Steel Pawl type Chain Stopper

Our premium JIS F2032 Cast Steel Roller Pawl Type Chain Stopper is an essential mooring equipment designed specifically for vessels. Positioned on the deck between the anchor windlass and hawsepipe, this chain stopper is used for clamping the anchor chain securely. When a ship is mooring or at anchor, the chain stopper effectively transfers the chain tension from the windlass to the ship, ensuring the windlass remains stress-free. This robust chain stopper is applicable to Grade 3 anchor chains with nominal diameters ranging from 70mm to 132mm, making it a versatile and reliable choice for marine applications.

Key Features and Benefits of JIS F2032 Cast Steel Chain Stopper:

Roller Pawl Type Design: Ensures smooth and efficient clamping of the anchor chain, reducing wear and tear.
Compliance with JIS F2032 Standard: Adheres to international marine standards for reliable performance.
Applicable to Grade 3 Anchor Chain: Suitable for a wide range of anchor chains, enhancing versatility.
Nominal Chain Diameter Range: Accommodates chains from 70mm to 132mm, catering to various vessel sizes.
High-Quality Cast Steel Material: Provides exceptional strength and durability, ensuring a long service life.
Durable and Long-Lasting: Withstands the harsh marine environment, reducing maintenance costs.
Competitive Pricing and Short Delivery Times: Offers excellent value for money with prompt delivery.
Certifications: Comes with certifications from CCS, ABS, BV, LR, NK, etc., ensuring compliance with global standards.
Customizable Options: Can be tailored to meet specific customer requirements, providing flexibility.

2016 – 1987 Cast Steel Pawl – type Chain Stoppers for Grade 2 Chains

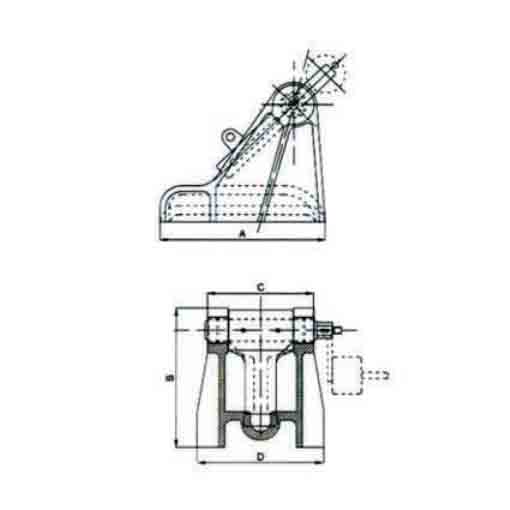

Model No.	Monitional Dia. of Anchor Chain (mm)	Size (mm) – A	Size (mm) – B	Size (mm) – C	Size (mm) – D	Weight (KG)
60	58~60	780	670	506	600	306
64	62~64	835	710	538	630	385
68	66~68	885	750	568	660	464
73	70~73	900	801	604	700	549
78	76~78	1015	852	641	750	674
84	81~84	1095	911	686	800	806
90	87~90	1170	969	732	850	1002
95	92~95	1235	1021	768	900	1165
102	97~102	1350	1090	816	950	1443
107	105~107	1400	1148	857	1000	1636
114	111~114	1490	1207	902	1050	1933
120	117~120	1585	1280	956	1120	2239

2016 – 1987 Cast Steel Pawl – type Chain Stoppers for Grade 3 Chains (Used for Grade 3 Anchor Chains)

Model No.	Monitional Dia. of Anchor Chain (mm)	Size (mm) – A	Size (mm) – B	Size (mm) – C	Size (mm) – D	Weight (KG)
42	36~42	530	494	357	422	210
46	42~46	620	538	404	480	396
51	48~51	680	599	438	520	429
56	52~56	730	638	472	560	465
60	58~60	780	670	506	600	480
64	62~64	835	710	538	630	500
68	66~68	885	750	568	660	567
73	70~73	950	801	604	700	682
78	76~78	1015	852	641	750	818
84	81~84	1095	911	686	800	1030
90	87~90	1170	969	732	850	1220
95	92~95	1235	1021	768	900	1420
102	97~102	1350	1090	816	950	1830
107	105~107	1400
