SCREW TYPE CHAIN STOPPER

CB/T178—96

265_YHS-002

SCOPE

This standard applies to screw type chain stoppers for various ships with anchor chain diameter of 22~102mm.

TYPE	DESCRIPTION
Type A	Screw type chain stopper for second-class anchor chains
Type B	Screw type chain stopper for third-class anchor chains

Anchor chain diameter 40~44mm, screw type chain stopper for second-class anchor chain:

SCREW TYPE CHAIN STOPPER A40~44 CB/T178-96

AS INDICATION:

ANCHOR CHAIN DIA 40~44mm, SECOND CLASS ANCHOR CHAIN SCREW-TYPE CABLE STOPPER

SCREW-TYPE CABLE STOPPER A40~44 CB/T178-96

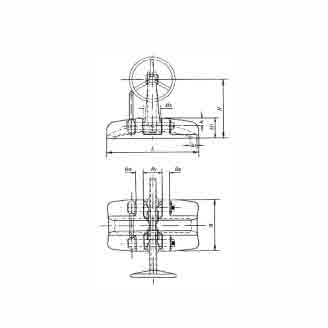

ANCHOR CHAIN DIAMETER	B	B1	B2	B3	B4	B5	b	b1	c	d	d1	d2
22~26	280	104	40	94	78	84	20	35	100	T26×8/2	250	25
28~32	310	118	45	114	92	90	25	40	210	T28×8/2	320	28
34~38	360	134	50	138	110	105	30	45	250	T30×10/2	320	30
40~44	420	152	55	168	128	120	35	50	290	T32×10/2	400	34
46~48	480	172	65	188	145	130	40	60	330	T36×10/2	400	36
52~58	550	192	75	214	168	150	45	75	380	T40×10/2	400	40
60~66	640	212	85	250	190	170	50	90	440	T44×12/2	500	40

ANCHOR CHAIN DIAMETER	H	H1	H2	H3	h	L	L1	L2	R	R1	r	r1	WEIGHT kg
22~26	335	105	70	175	42	500	275	285	45	95	22	40	90
28~32	400	125	80	204	50	550	330	320	50	105	28	50	122
34~38	455	135	90	235	60	600	375	385	55	125	33	55	163
40~44	515	150	100	271	70	670	430	415	65	145	37	65	238
46~48	585	175	115	307	80	770	480	485	75	165	42	75	353
52~58	680	200	130	360	90	970	585	545	85	190	48	85	518
60~66	775	225	150	410	105	1000	640	615	100	220	55	100	772

Note: The description may be different with the product, please contact us for quotation.
