CAST LEVER CHAIN STOPPER

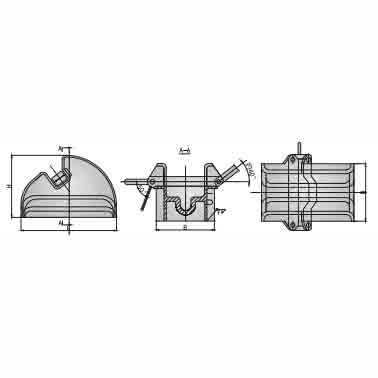

Product Diagram

The image displays a technical drawing of the cast lever chain stopper in two views: a side – view and a front – view (A – A section). The side – view shows the overall profile of the stopper, including the lever, the base, and the chain – engaging part. The front – view (A – A section) illustrates the cross – sectional structure, showing how the chain is secured. Key dimensions are labeled on both views, such as the chain diameter, and various linear dimensions (e.g., B, H, L).

Specification Table

Chain Diameter (mm)	B (mm)	H (mm)	L (mm)	Weight (kg)
12.5 – 14	142	162	235	5
16 – 17.5	170	190	270	6
19 – 20.5	193	216	310	7
22 – 24	219	241	345	7
26 – 28	247	270	385	9
30 – 32	304	305	435	9
34 – 36	336	378	490	10
38 – 42	366	412	540	10
42 – 46	397	456	590	12
46 – 50	428	491	640	13
50 – 54	457	528	695	13
54 – 58	517	564	745	14
58 – 62	568	600	850	14
62 – 66	635	635	900	14
66 – 68	547 (likely an outlier or error, but kept as in the original)	–	–	363 (likely cumulative or total – related, but context not clear from the table alone)
