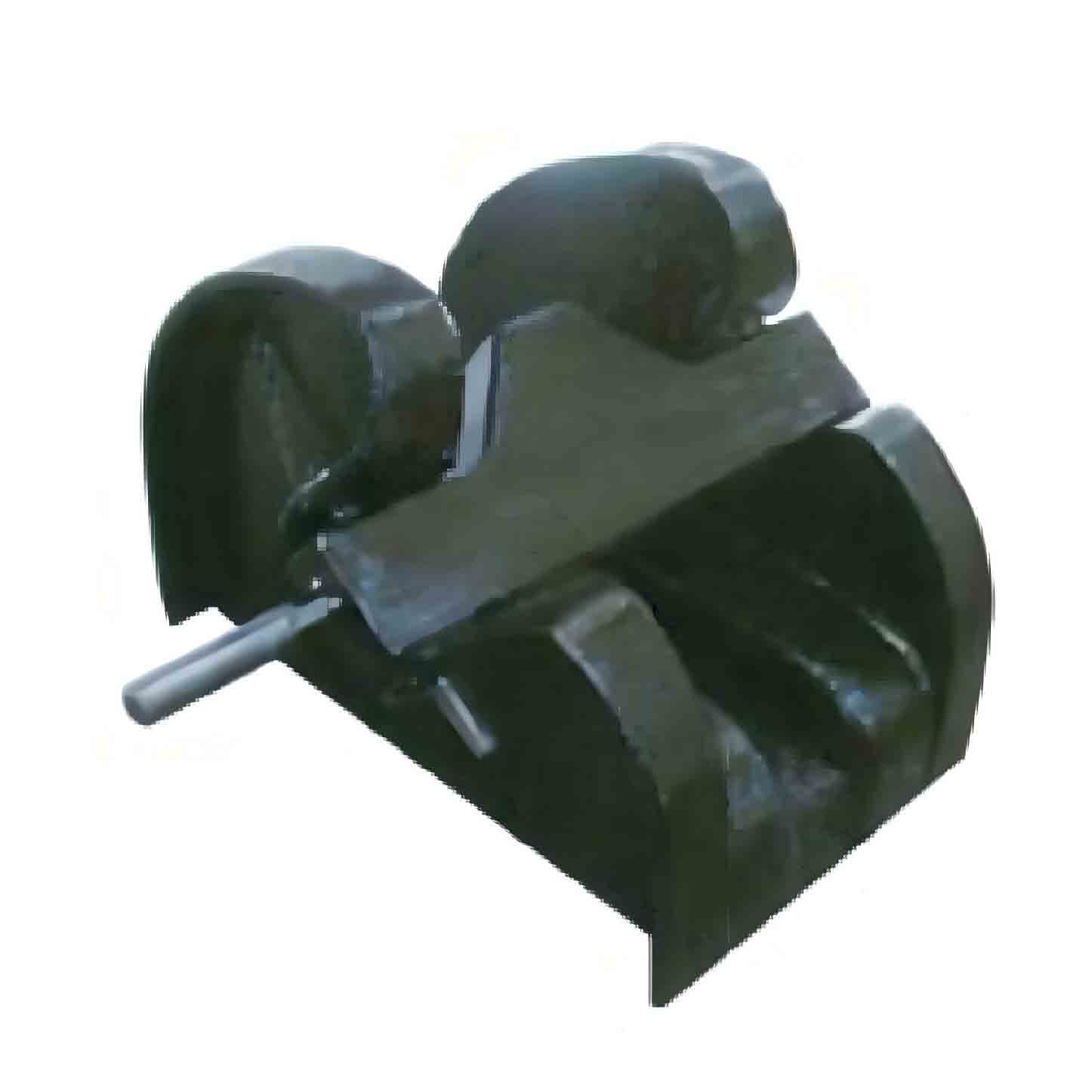

Anchor Chain Stopper for Offshore Oil Engineering Applications
Introducing our top-of-the-line Anchor Chain Stopper, crafted from high-quality cast steel (SBM90-60) to ensure maximum durability and a long service life. This essential marine equipment is designed to securely fix anchor chains, preventing them from rolling out and effectively reducing the working load on the windlass, thereby protecting it from damage.
Key Features of Anchor Chain Stopper:
- Main Material: Constructed from robust cast steel (SBM90-60) for superior strength and longevity.
- Color Options: Available in a striking red finish or customized to match your specific requirements.
- Customizable Size: Tailored to fit your exact specifications, ensuring a perfect fit for your anchor chain system.
- Durable and Long-Lasting: Built to withstand the harsh marine environment, providing reliable performance for years to come.
- Offshore Oil Engineering Application: Specifically designed for use in offshore oil engineering projects, where safety and reliability are paramount.
- Reasonable and Competitive Pricing: Offering exceptional value for money without compromising on quality.
- High-Quality Product: Manufactured to the highest standards, ensuring consistent performance and reliability.
- Excellent Customer Service: Dedicated to providing exceptional service and support throughout your purchase and beyond.
- Certifications: Holds CCS certification, with additional certifications such as BV, ABS, and DNV available upon request.
- Packing Options: Standard packing or customized according to your specific needs.
- Payment Methods: Accepts various payment methods including L/C, T/T, etc., for your convenience.
Additional Marine Chain Stoppers Available:
We also offer a wide range of other marine chain stoppers to suit various applications, including:
- JIS F2002 Bar Type Chain Stoppers
- JIS F2033 Roller Bar Type Chain Stoppers
- JIS F2023 Cast Bar Type Chain Stoppers
- JIS F2032 Roller Pawl Type Chain Stopper
- CB T3844-2000 Chain Stopper
- CB 286-84 Bar Type Chain Stoppers
- GB T178-96 Spiral Type Chain Stoppers
- JIS F2031 Pawl Type Chain Stoppers
- JIS F2016 Pawl Type Chain Stoppers
- JIS F2015 Cast Steel Chain Stoppers
- CB T3822-99 Adjustable Chain Stoppers
- OCIMF Type Chain Stopper
- China JIS F2002-1976 Cast Iron Bar Type Chain Stopper
Technical Specifications of Anchor Chain Stopper:
| Nominal Chain Dia. (mm) | Dimensions (mm) – B | Dimensions (mm) – H | Dimensions (mm) – L | Dimensions (mm) – h | Dimensions (mm) – B2 | Weight (kg) |
|---|---|---|---|---|---|---|
| 17-19 | 195 | 190 | 270 | 32 | 32 | 22 |
| 20-22 | 215 | 216 | 310 | 37 | 38 | 31 |
| 23-25 | 240 | 241 | 345 | 43 | 43 | 44 |
| 26-28 | 265 | 270 | 385 | 48 | 49 | 58 |
| 30-32 | 305 | 305 | 435 | 54 | 55 | 89 |
| 34-36 | 340 | 342 | 490 | 61 | 61 | 122 |
| 38-40 | 370 | 378 | 540 | 68 | 65 | 160 |
| 42-44 | 405 | 412 | 590 | 75 | 72 | 208 |
| 46-48 | 440 | 450 | 640 | 82 | 78 | 272 |
| 50-52 | 470 | 491 | 695 | 88 | 85 | 338 |
| 54-56 | 495 | 522 | 745 | 95 | 92 | 414 |
| 58-60 | 530 | 564 | 795 | 102 | 98 | 505 |
| 62-64 | 565 | 600 | 850 | 109 | 104 | 618 |
| 66-68 | 590 | 635 | 900 | 116 | 110 | 737 |
Note: Additional surface treatment options such as polished, galvanized, or bitumen painted are available to enhance corrosion resistance and extend the service life of the chain stopper.
Frequently Asked Questions (FAQs):
- What is the primary function of an anchor chain stoppers?
- The primary function of an anchor chain stopper is to securely fix the anchor chain, preventing it from rolling out and reducing the working load on the windlass.
- What materials are used in the construction of the anchor chain stoppers?
- Our anchor chain stopper is constructed from high-quality cast steel (SBM90-60) for superior strength and durability.
- Can the anchor chain stopper be customized to fit specific requirements?
- Yes, the anchor chain stopper can be customized in terms of size, color, and surface treatment to meet your specific requirements.
- What certifications does the anchor chain stoppers hold?
- Our anchor chain stopper holds CCS certification, with additional certifications such as BV, ABS, and DNV available upon request.
- What are the benefits of using an anchor chain stoppers in offshore oil engineering applications?
- Using an anchor chain stopper in offshore oil engineering applications helps to ensure the safety and reliability of the mooring system, protecting the windlass from damage and reducing maintenance costs.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
