Marine Chain Stopper
Marine Chain Stopper
CB/T3844-2000

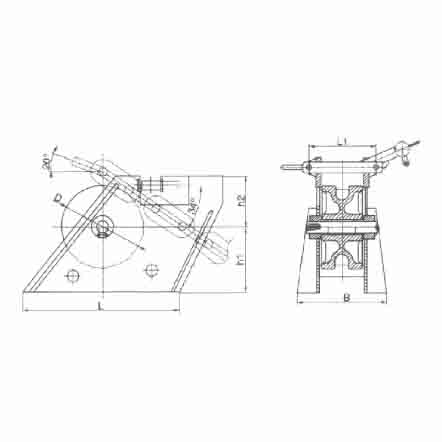

Casting bar type chain stopper
| Nominal dia. | Anchor chain dia. | l | l1 | D | h1 | h2 | B | Weight kg |
|---|---|---|---|---|---|---|---|---|
| 44 | 42~44 | 1000 | 370 | 484 | 392 | 281 | 380 | 343 |
| 48 | 46~48 | 1050 | 420 | 528 | 414 | 306 | 446 | 390 |
| 52 | 50~52 | 1100 | 440 | 572 | 440 | 338 | 510 | 480 |
| 56 | 54~56 | 1150 | 450 | 600 | 460 | 354 | 556 | 608 |
| 60 | 58~60 | 1200 | 470 | 620 | 490 | 378 | 610 | 739 |
| 64 | 62~64 | 1250 | 500 | 640 | 520 | 400 | 666 | 811 |
| 68 | 66~68 | 1300 | 550 | 680 | 540 | 420 | 732 | 1061 |
| 73 | 70~73 | 1350 | 570 | 730 | 580 | 460 | 800 | 1229 |
| 78 | 76~78 | 1400 | 610 | 780 | 630 | 490 | 865 | 1494 |
| 84 | 81~84 | 1460 | 650 | 840 | 670 | 530 | 940 | 1758 |
| 90 | 87~90 | 1540 | 710 | 900 | 720 | 570 | 1030 | 2171 |
| 95 | 92~95 | 1600 | 740 | 950 | 760 | 610 | 1080 | 2567 |
| 102 | 97~102 | 1680 | 790 | 1020 | 800 | 660 | 1150 | 2755 |
| 107 | 105~107 | 1750 | 840 | 1070 | 880 | 690 | 1210 | 3640 |
| 114 | 111~114 | 1820 | 880 | 1140 | 910 | 740 | 1270 | 4302 |
| 122 | 117~122 | 1880 | 930 | 1220 | 980 | 790 | 1340 | 5326 |
| 132 | 124~132 | 1960 | 1000 | 1320 | 1060 | 860 | 1440 | 6244 |
Note: The description may be different with the product, please contact us for quotation.
