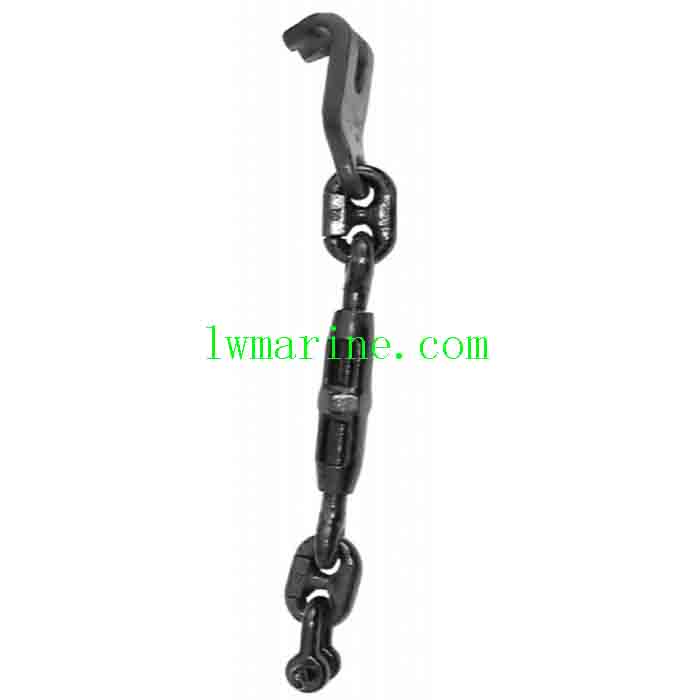

Devil’s Claw Type Chain Stopper

Heavy-Duty Devil’s Claw Type Chain Stopper Assembly for Marine Mooring Systems

Our premium-grade Devil’s Claw chain stoppers, engineered to deliver unmatched security and reliability for vessel anchoring systems. Available in sizes from 3/4 inch to 4 inch, our heavy-duty chain stoppers are designed to withstand extreme marine conditions while providing maximum holding power for commercial and industrial applications.

Product Features & Technical Specifications

Our Devil’s Claw Type Chain Stopper Assembly features precision engineering with robust materials to ensure superior performance in demanding marine environments. Each unit undergoes rigorous quality control to meet international marine standards.

Technical Specifications Table

| Chain Size | Dimensions (Inches) |||||| Det. Link Size | Load Capacity ||| Weight |
|————|———————|——–|——-|——-|——-|——-|—————-|—————|————|——|
| Inches | mm | B Min. | B Max. | A | D | C | E | | Proof Load (Lbs) | Break Load (Lbs) | Lbs. |
| 3/4 – 7/8 | 19 – 22 | 34-1/2 | 42 | 17-1/4 | 11 | 6-3/4 | 1 | 7/8 | 64,400 | 91,800 | 33 |
| 15/16 – 1.1/4 | 24 – 32 | 46-11/16 | 55-11/16 | 19-5/8 | 13 | 9 | 1-1/4 | 1-1/4 | 129,000 | 184,000 | 73 |
| 1.5/16 – 1.5/8 | 33 – 41 | 53 | 63-1/2 | 23-3/4 | 16 | 12-1/4 | 1-1/2 | 1-1/2 | 183,500 | 262,000 | 145 |
| 1.11/16 – 2.3/8 | 43 – 60 | 57-1/4 | 67-3/4 | 24-1/8 | 16 | 15-5/8 | 1-5/8 | 1-1/2 | 183,500 | 262,000 | 181 |
| 2.7/16 – 2.3/4 | 62 – 70 | 69-1/4 | 89-1/4 | 29-3/4 | 20 | 18 | 1-7/8 | 1-3/4 | 247,000 | 352,000 | 403 |
| 2.13/16 – 3.1/2 | 71 – 89 | 90-1/2 | 106-1/2 | 38-3/8 | 24 | 23 | 2-5/8 | 2-1/2 | 484,000 | 692,000 | 872 |
| 3.9/16 – 4 | 90 – 102 | 106-1/8 | 124-1/8 | 44-3/8 | 27-1/2 | 28 | 2-7/8 | 3 | 679,000 | 970,000 | 1,216 |

Key Applications & Industries

• Commercial shipping and vessel mooring systems

• Offshore platform anchoring solutions

• Port and dock security installations

• Marine construction and heavy lifting operations
